GODOX Video Light LED 1000D II
The LED1000D II Daylight Video LED Light Panel from Godox is daylight-balanced and offers a color temperature of 5600K with a ±300K variance. Dimming settings range from 0% to full power and can be adjusted using the light’s on-board LCD panel. For enhanced versatility, the LED1000D II Daylight DMX LED Video Light also features connectivity for DMX controllers.
This video light is rated for output up to 5400 Lux at 3.3′, drawing a maximum of 70W of power during use. A yoke with a standard light stand receiver and locking knob supports the LED1000D II Daylight DMX LED Video Light and its design also incorporates a built-in filter slot for easy light manipulation. While an AC adapter is provided for in-studio use, separately available Sony 14.8V BP-L V-mount batteries can be used to provide power while on location.
- Portable LED panel outputs up to 70W of power, rated for 5400 Lux at 3.3′
- Daylight-balanced with a color temperature of 5600K with a ±300K variance
- Brightness can be dimmed from 0 to 100%
- Separately available RC-A5 II remote control allows for easy wireless adjustments, runs on two AAA batteries, and works from up to 65.6′ away

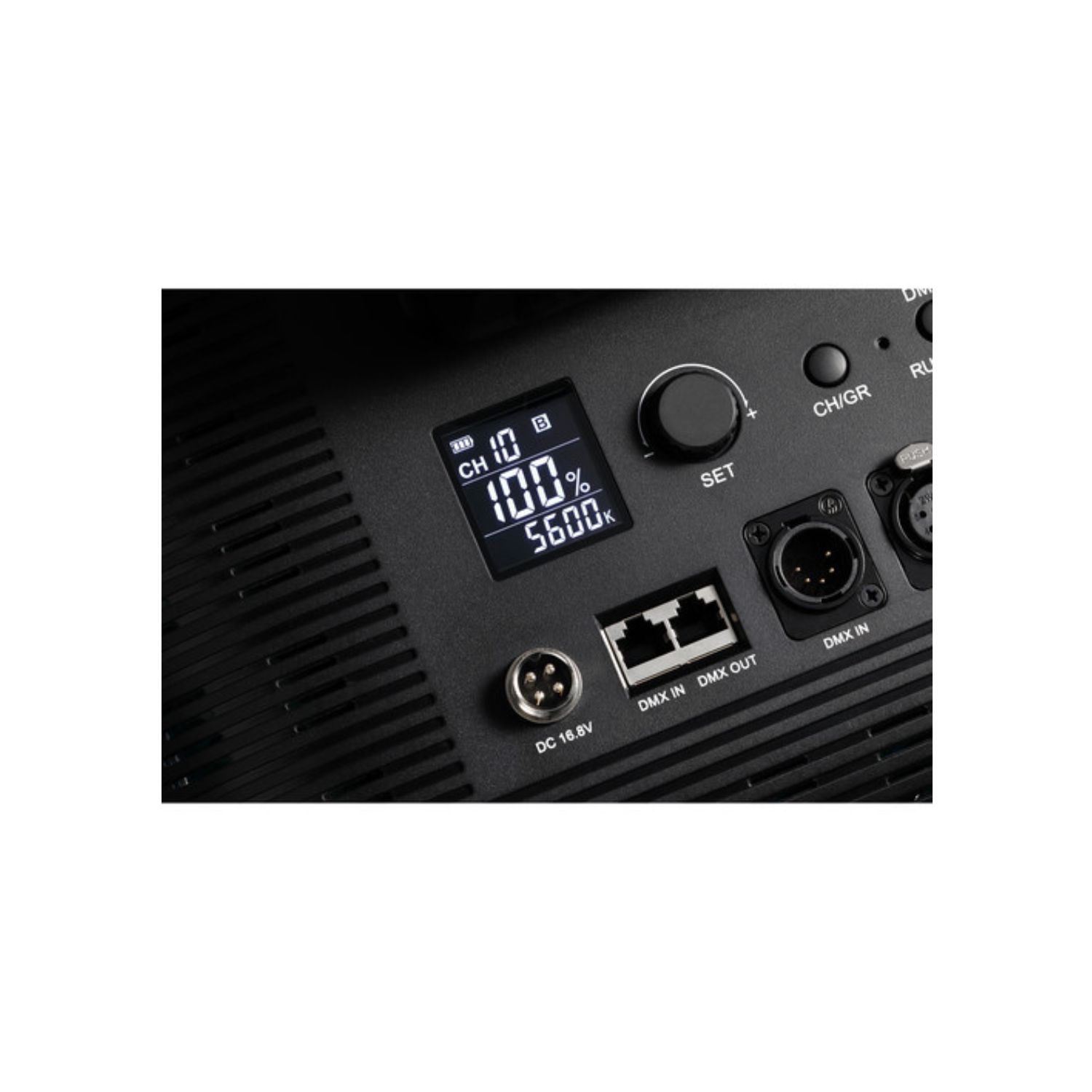

- On-board control with an LCD screen for viewing settings
- Connectivity for DMX controllers provides enhanced versatility

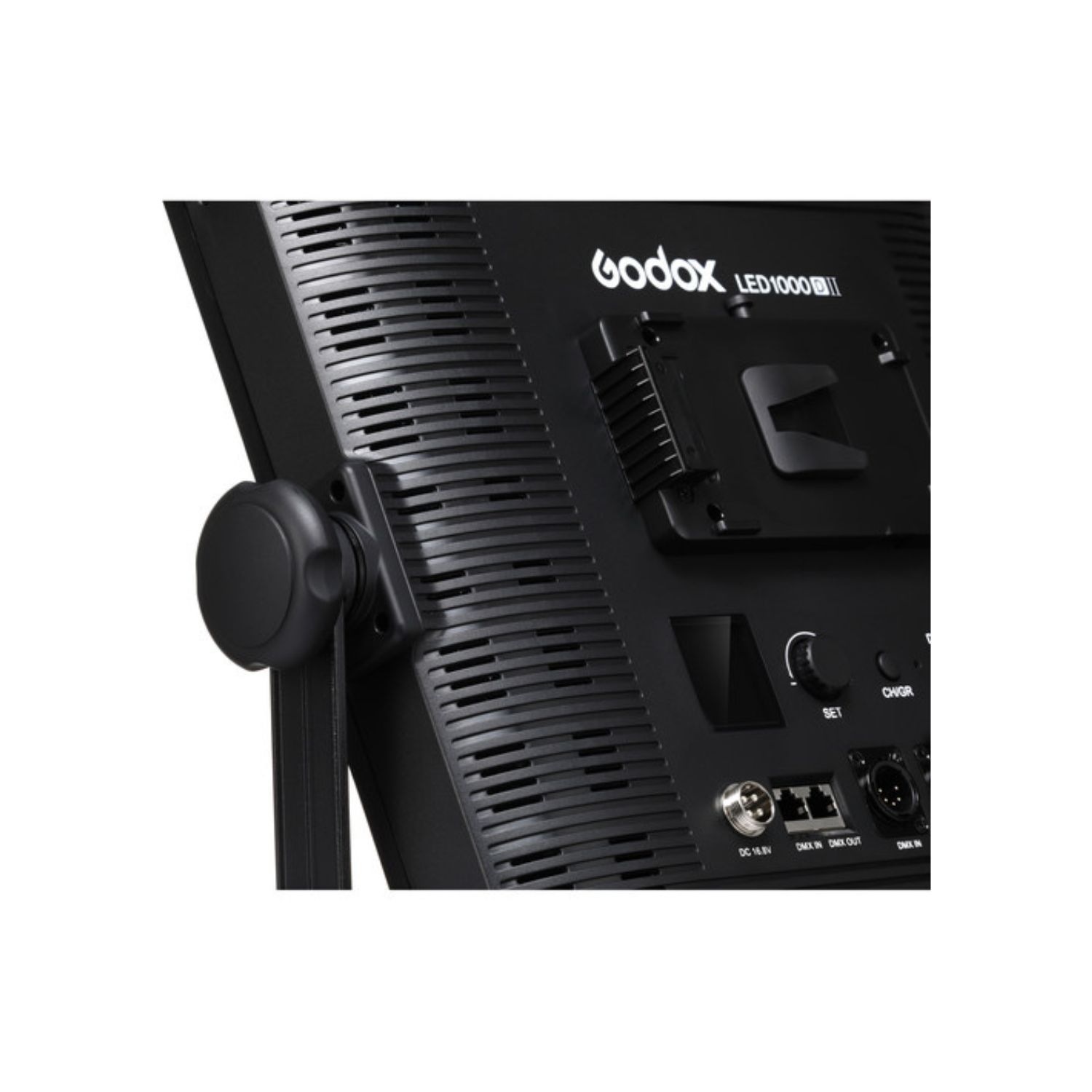

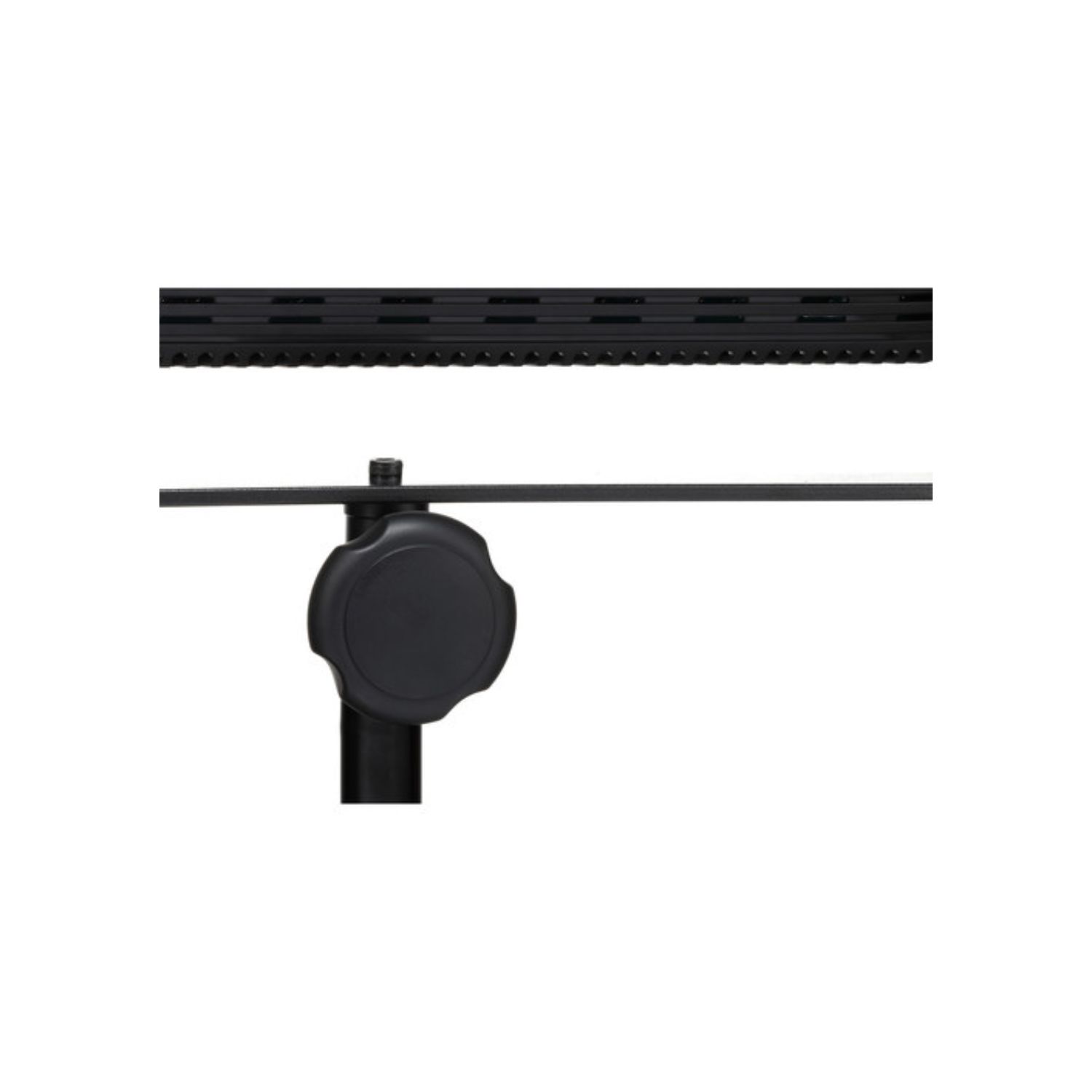

- Yoke is compatible with most light stands and offers tightening knob for a secure fit

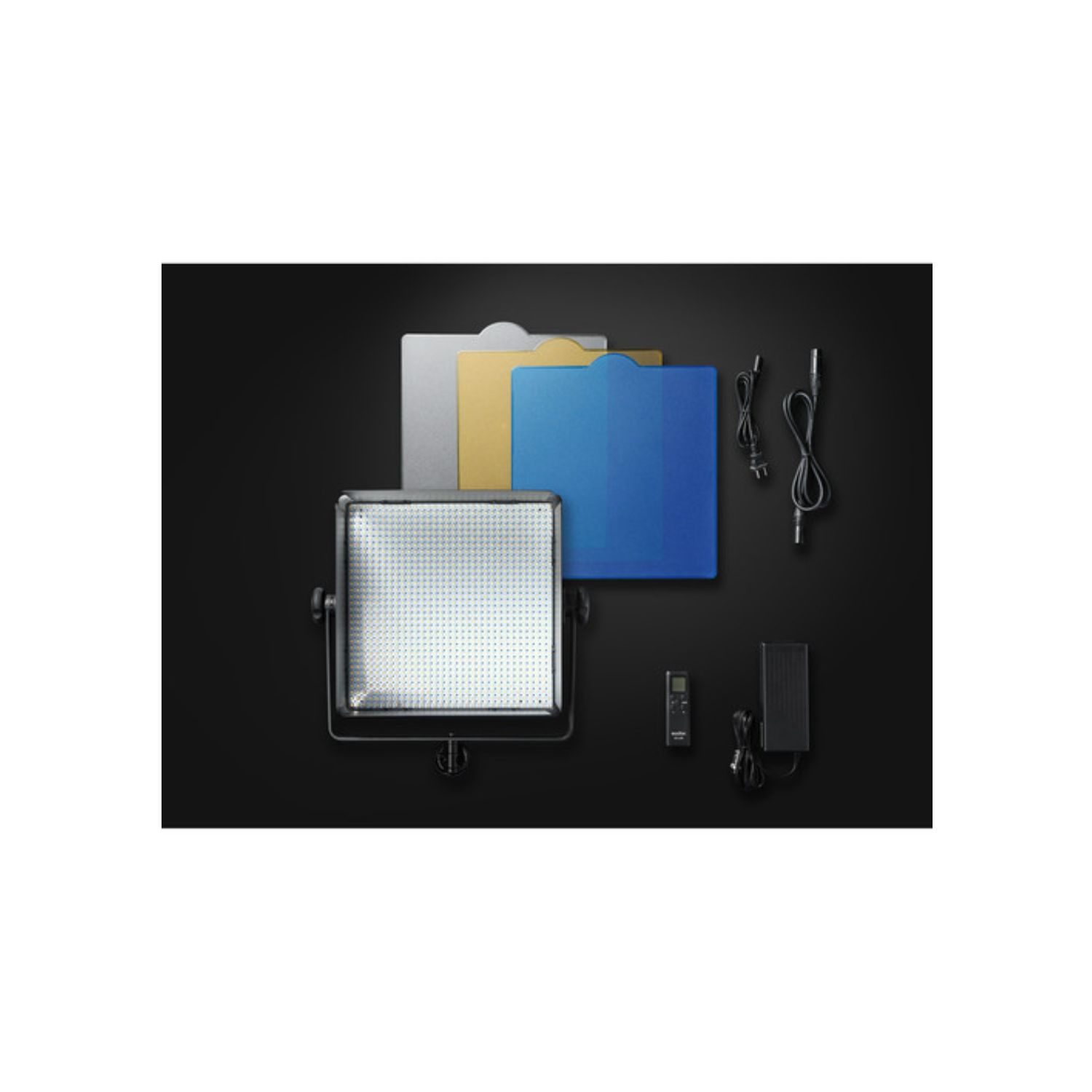

- Built-in filter slot for use with three included filters: a diffusion panel, as well as blue and yellow colors

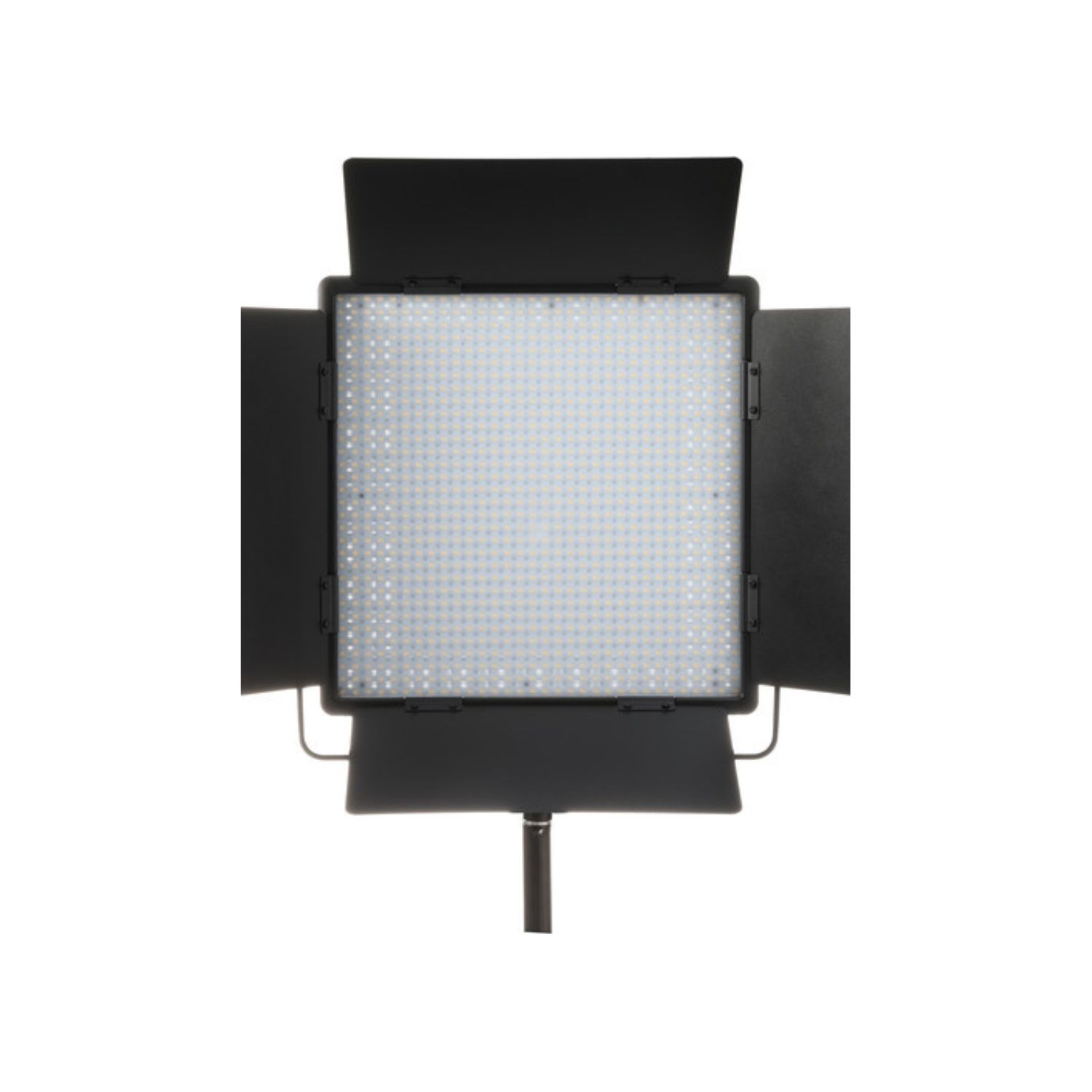

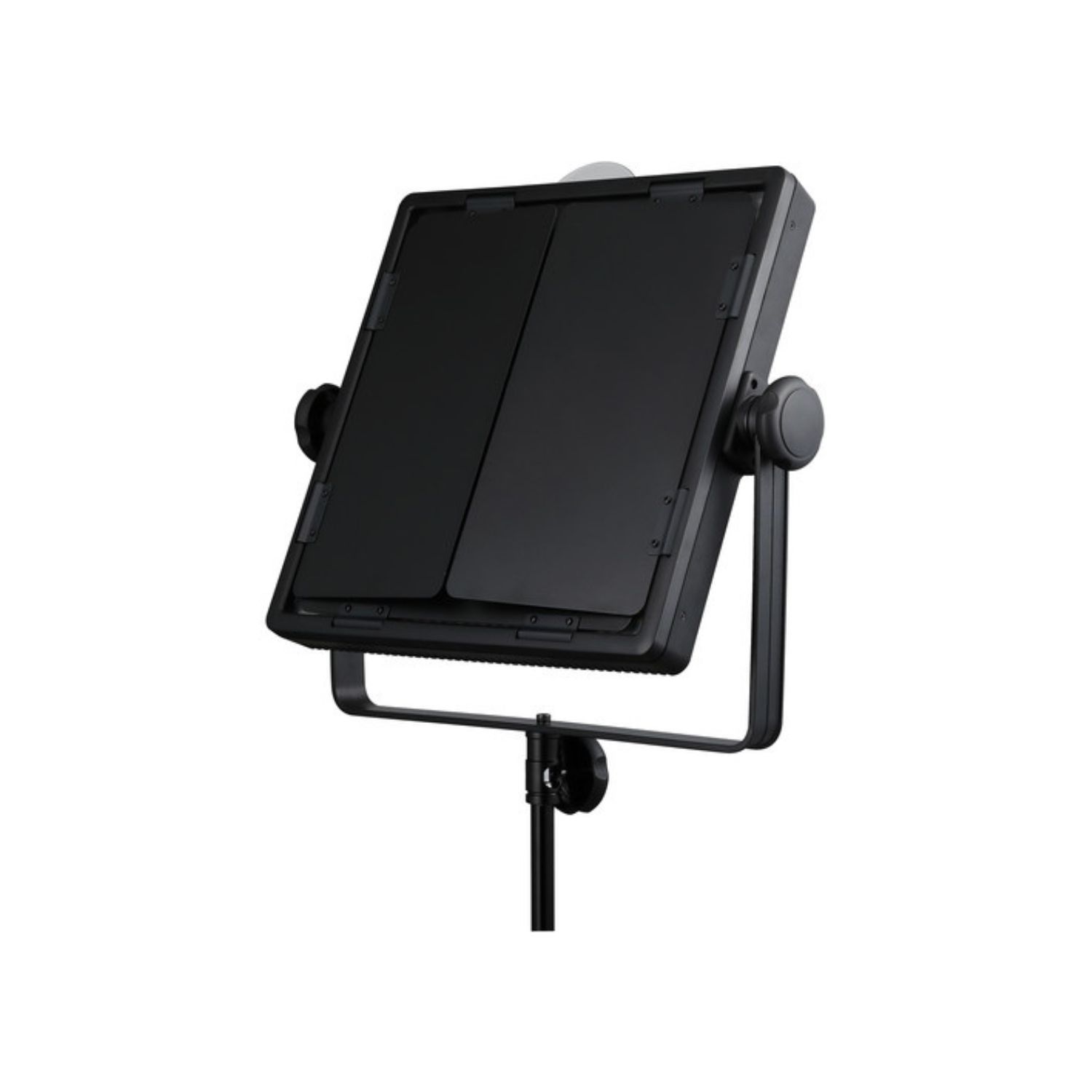

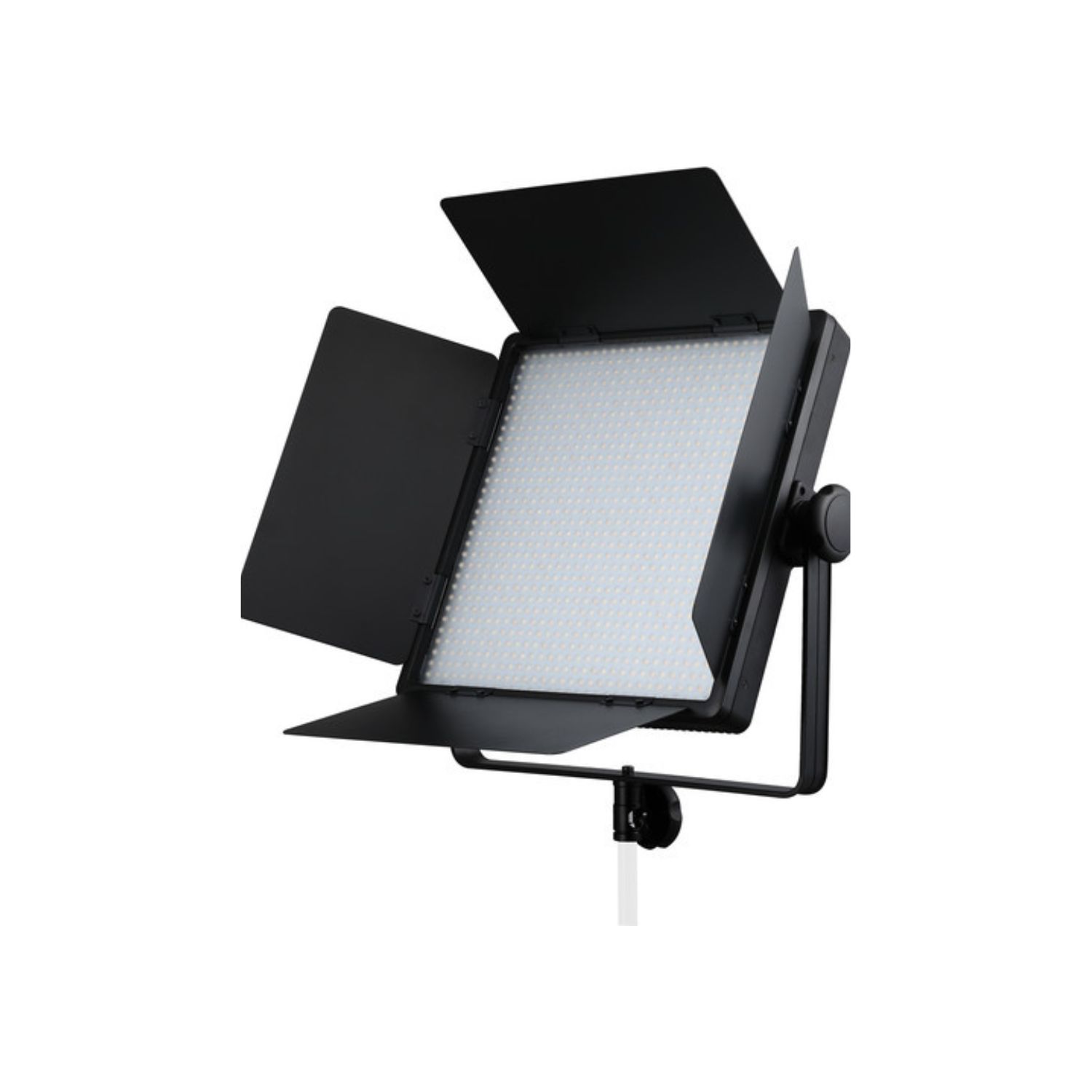

- Four reflective barndoors to shape and direct light output
- Built-in 13 to 16.8V DC power supply and included AC adapter for wired use with a power outlet

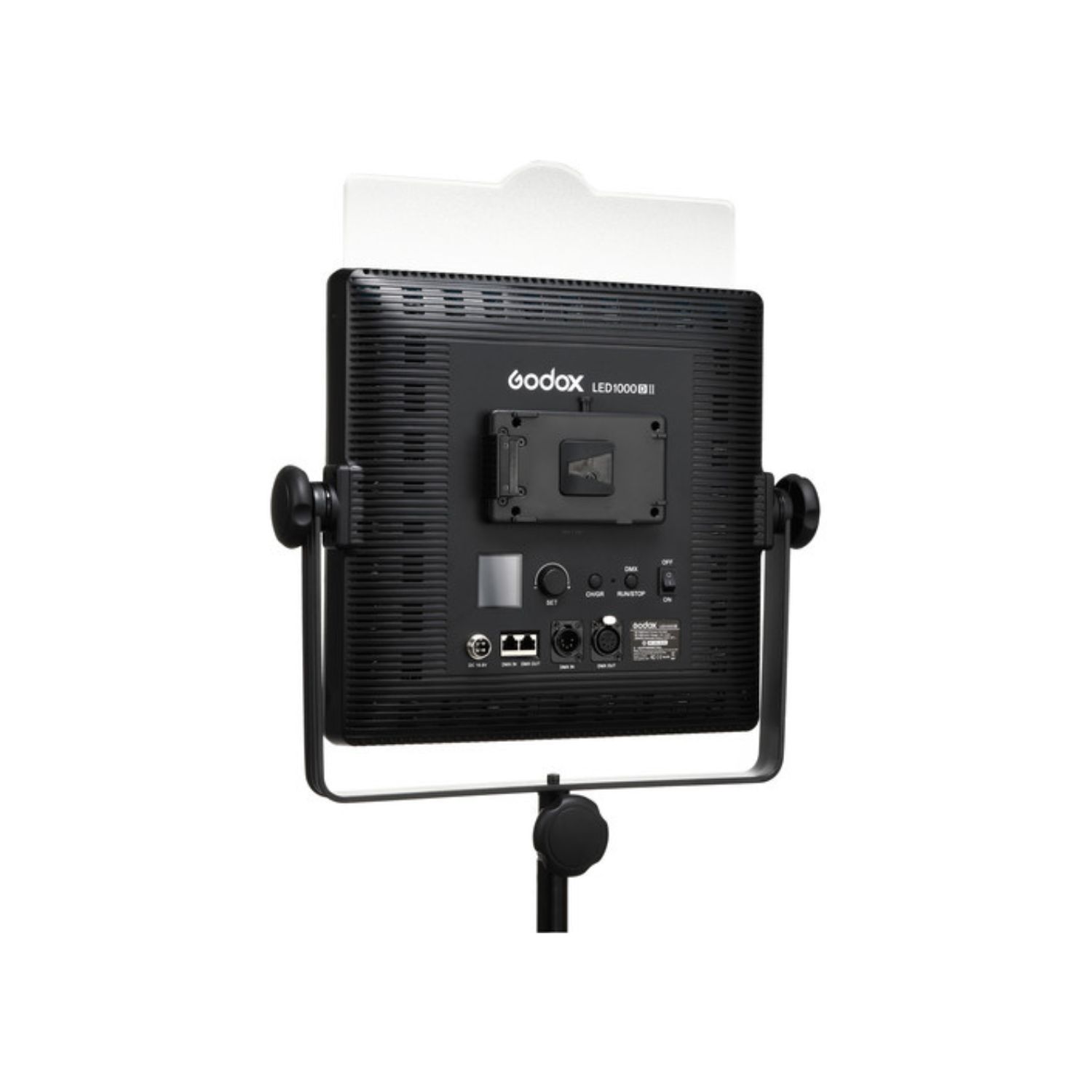

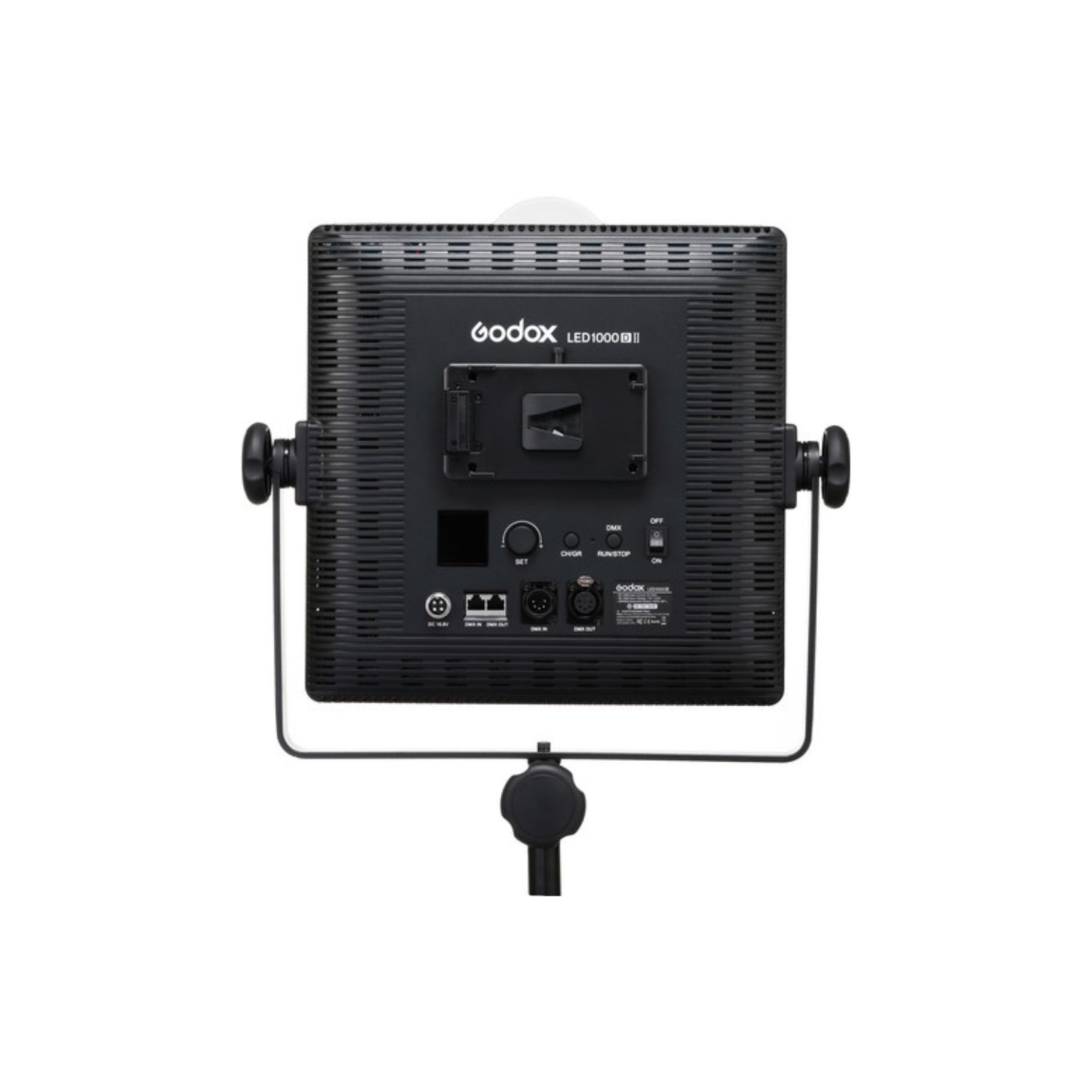

- V-mount battery plate accepts a Sony BP-L battery for truly portable operation
Specification
Item Type

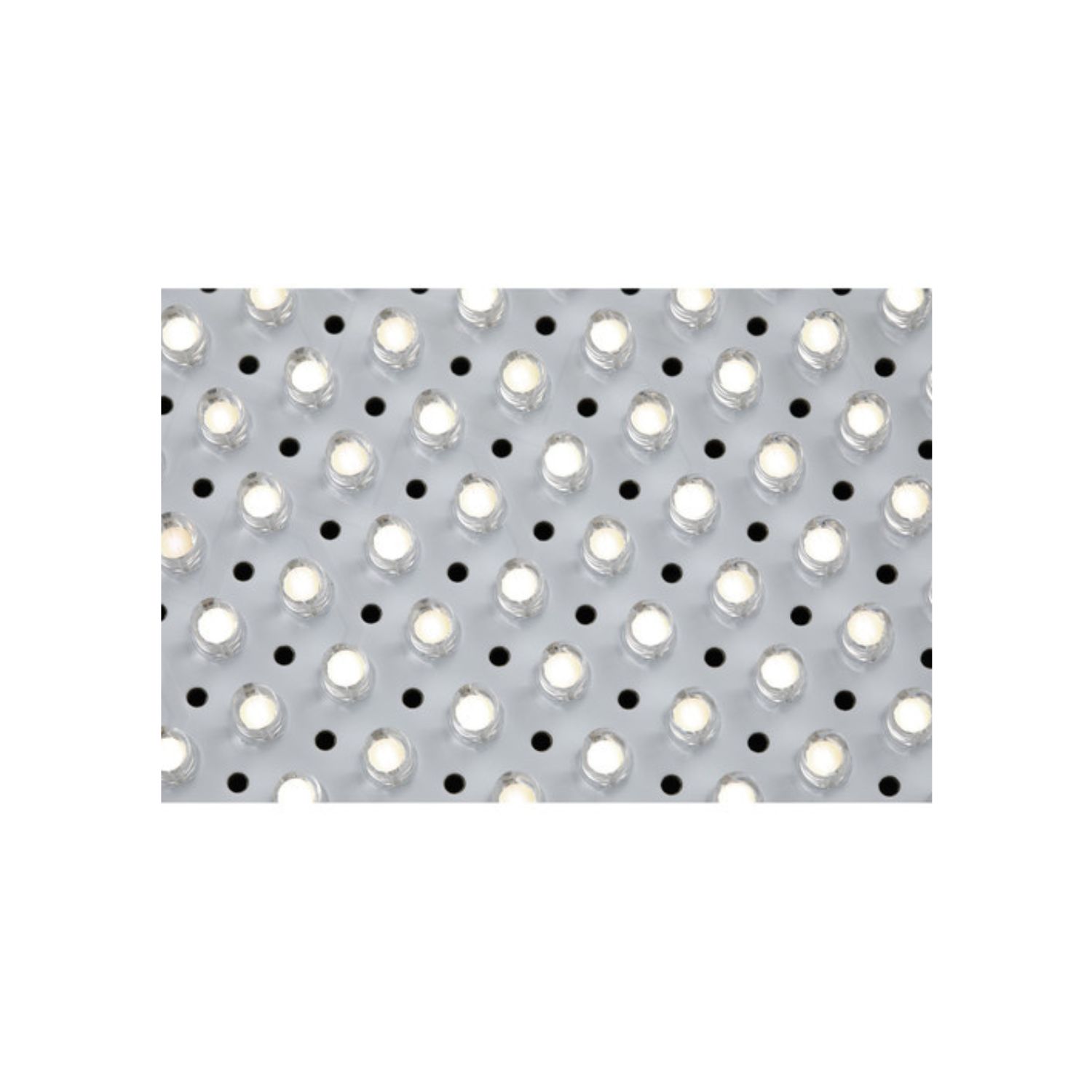

1x LED Array LED Light Panel
Included Light Modifier
1x Barndoors
Included Storage Case
No
Photometrics
5600K:
501 fc / 5400 Lux at 3.3′ / 1 m
Color Temperature
5600K +/- 300K
Color Modes
Daylight
Color Accuracy Standard
CRI 96
TLCI 98
Dimming
Built-In Dimmer / DMX
• 0 to 100%
Front Accessory Mount
Proprietary
Wireless Remote Control Type
Proprietary Wireless *Remote Not Included
Power Source
AC to DC Adapter (Included)
Battery (Not Included)
Battery Plate Type
1x V-Mount (Built-In)
Battery
1x V-Mount Rechargeable, 14.8 VDC (Not Included)
Input Power
13 to 16.8 VDC
120 to 240 VAC, 50 / 60 Hz
Power Consumption
70 W
Fixture Mounting
1x 5/8″ Receiver (Via Yoke Mount)
Light Fixture
Item Type
1x LED Array LED Light Panel
Included Light Modifier
1x Barndoors
Included Filters
Soft Diffusion
Included Storage Case
No
Photometrics
5600K:
501 fc / 5400 Lux at 3.3′ / 1 m
Color Temperature
5600K +/- 300K
Color Modes
Daylight
Color Accuracy Standard
CRI 96
TLCI 98
Dimming
Built-In Dimmer / DMX
• 0 to 100%

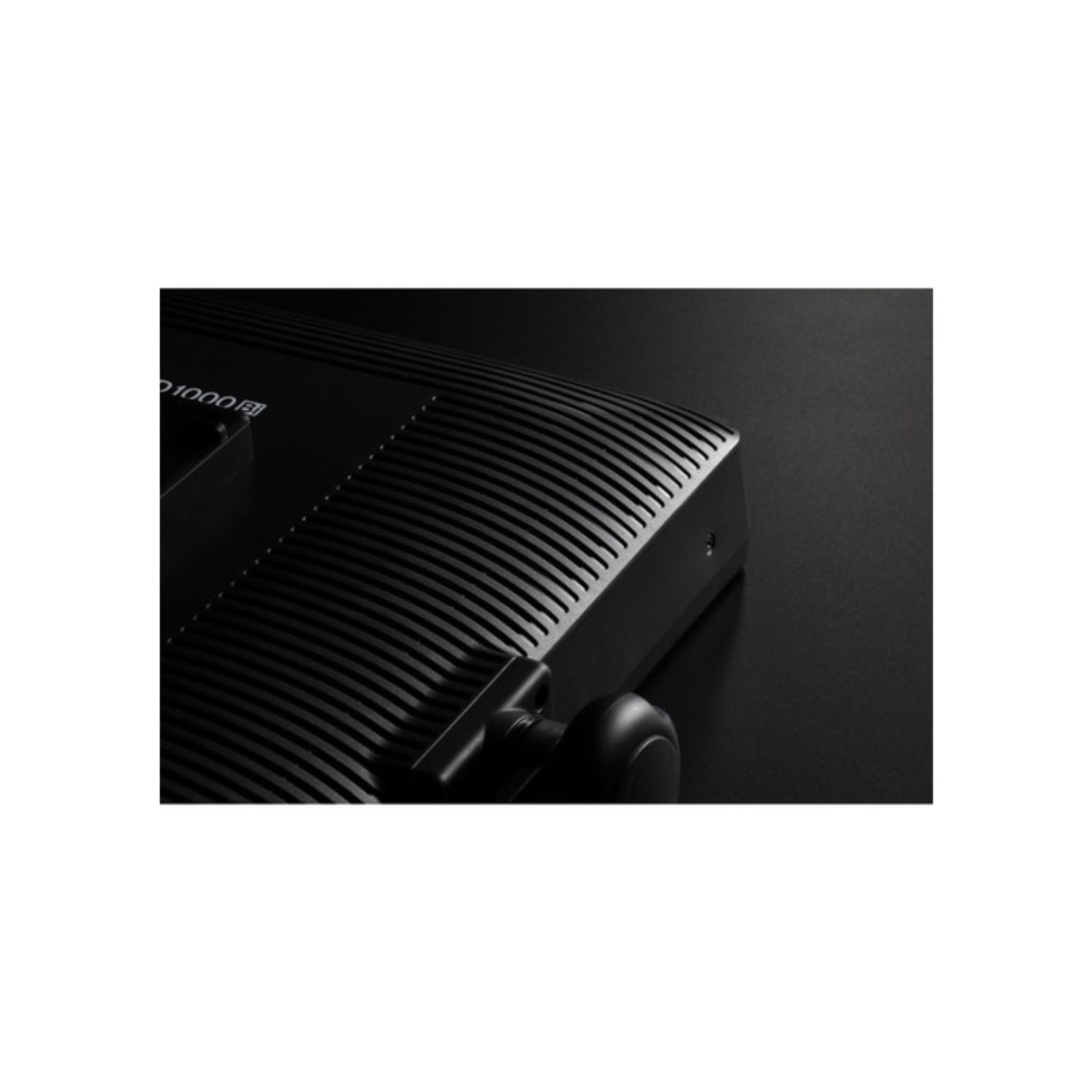

Cooling System
Passive
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Proprietary Wireless *Remote Not Included
Mobile App Compatible
No
Wireless Channels
16
Wireless Groups
6
Wireless Range
65.6′ / 20 m
Power & I/O
Power Source
AC to DC Adapter (Included)
Battery (Not Included)

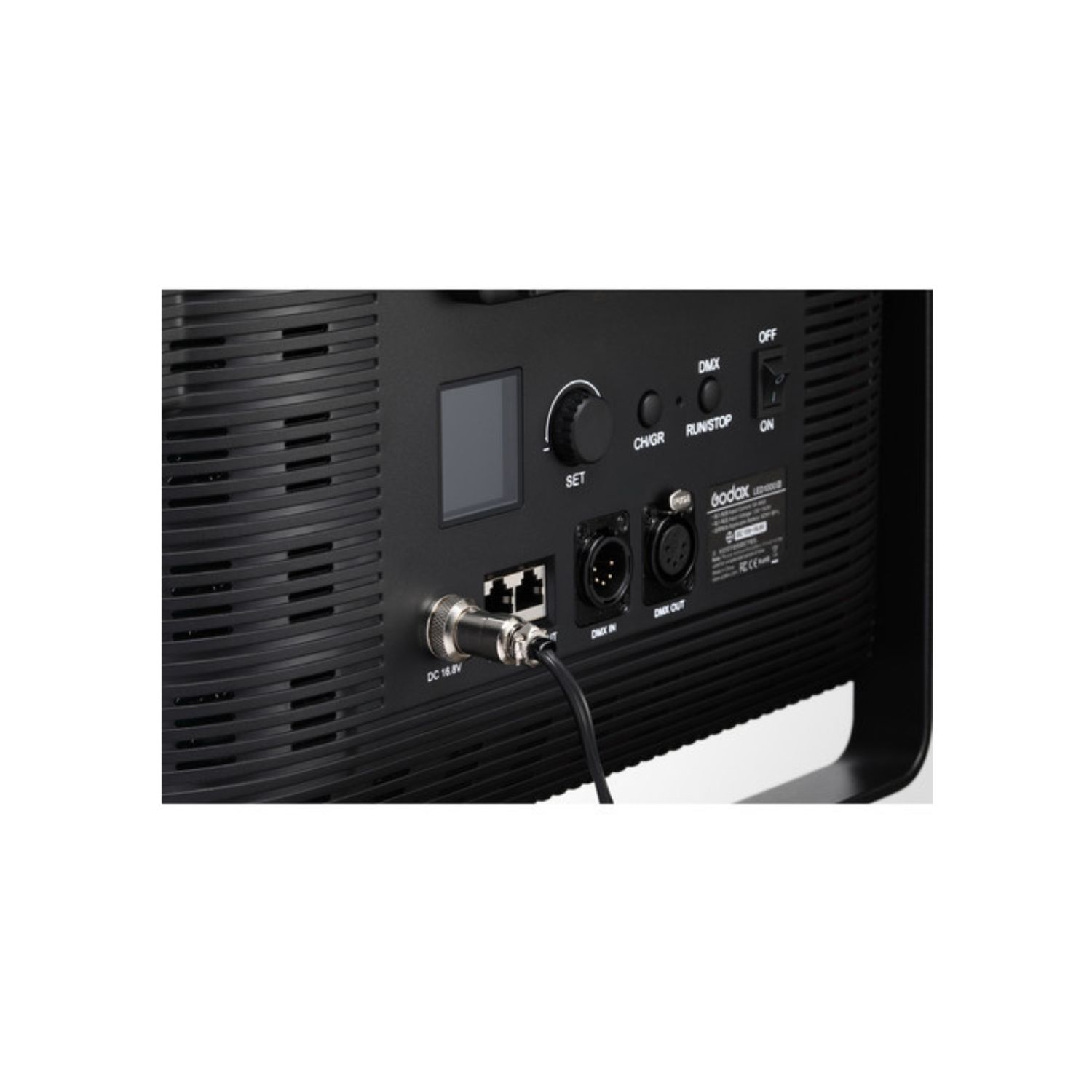

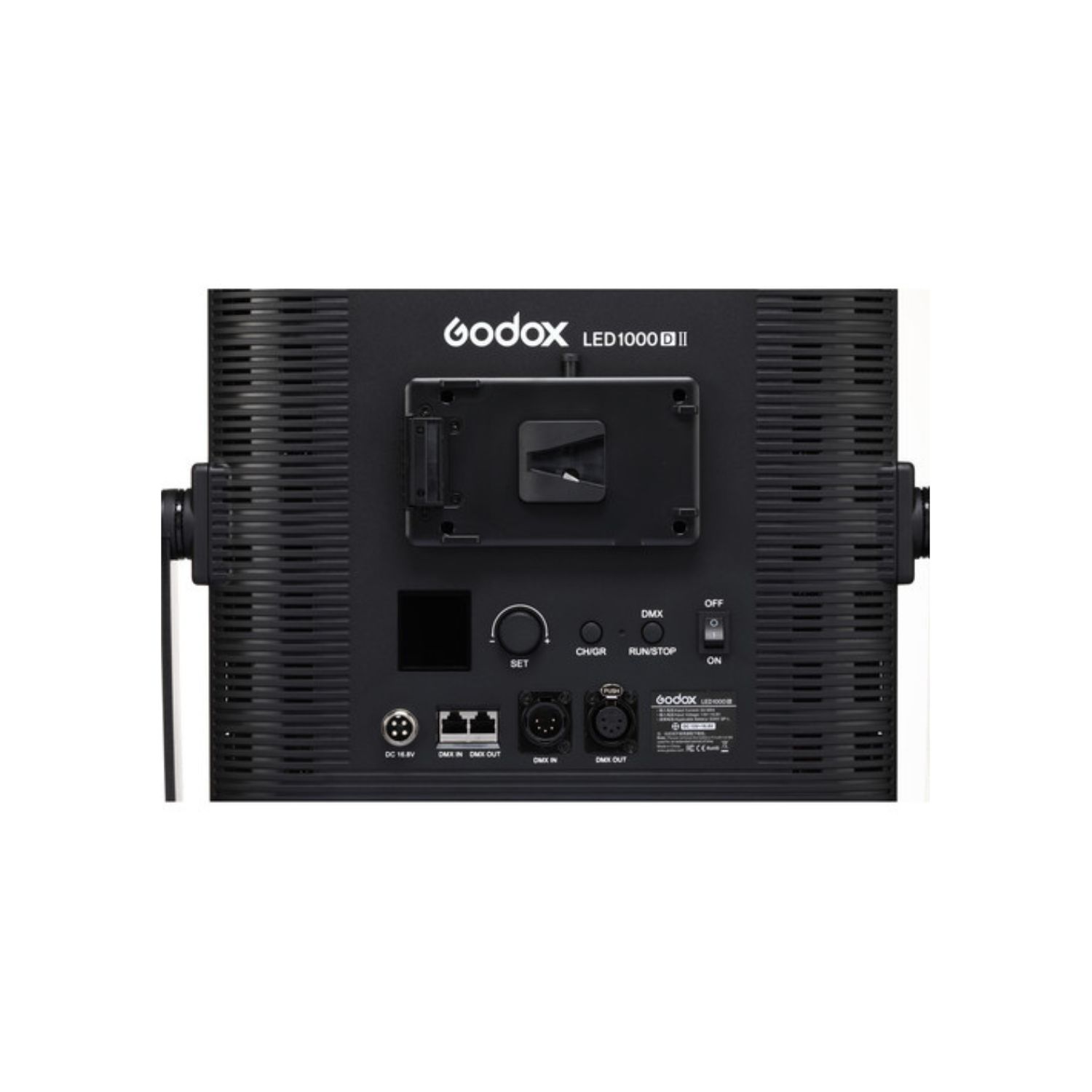

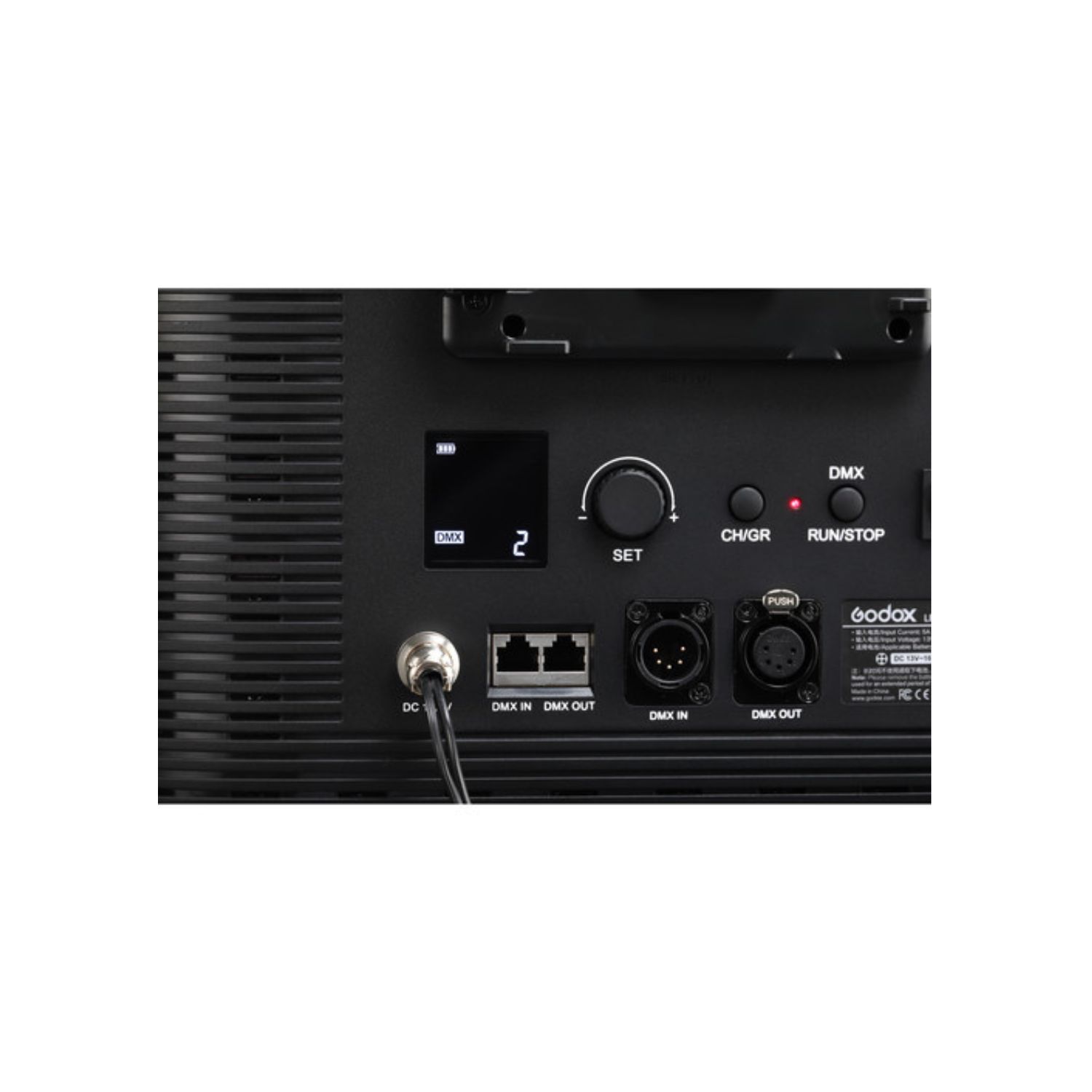

Inputs/Outputs
1x Proprietary 4-Pin Power Input (13 to 16.8 VDC)
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
1x RJ45 DMX Input
1x RJ45 DMX Output
Battery Plate Type
1x V-Mount (Built-In)
Battery
1x V-Mount Rechargeable, 14.8 VDC (Not Included)
Input Power
13 to 16.8 VDC
120 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1x USA Type-A/B to Proprietary 4-Pin AC to DC Adapter
Inline Switch
No
Power Pass-Thru
No
Power Consumption
70 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1x 5/8″ Receiver (Via Yoke Mount)
General
Display
LCD
Environmental Resistance
No
Operating Conditions
14 to 104°F / -10 to 40°C
Certifications
CE, FCC, RoHS
Dimensions
18.1 x 16.9 x 3.9″ / 46 x 43 x 10 cm (Fixture)
Weight
5.53 lb / 2.51 kg
Packaging Info
Package Weight
10.45 lb
Box Dimensions (LxWxH)
21.2 x 18.4 x 5.4″
