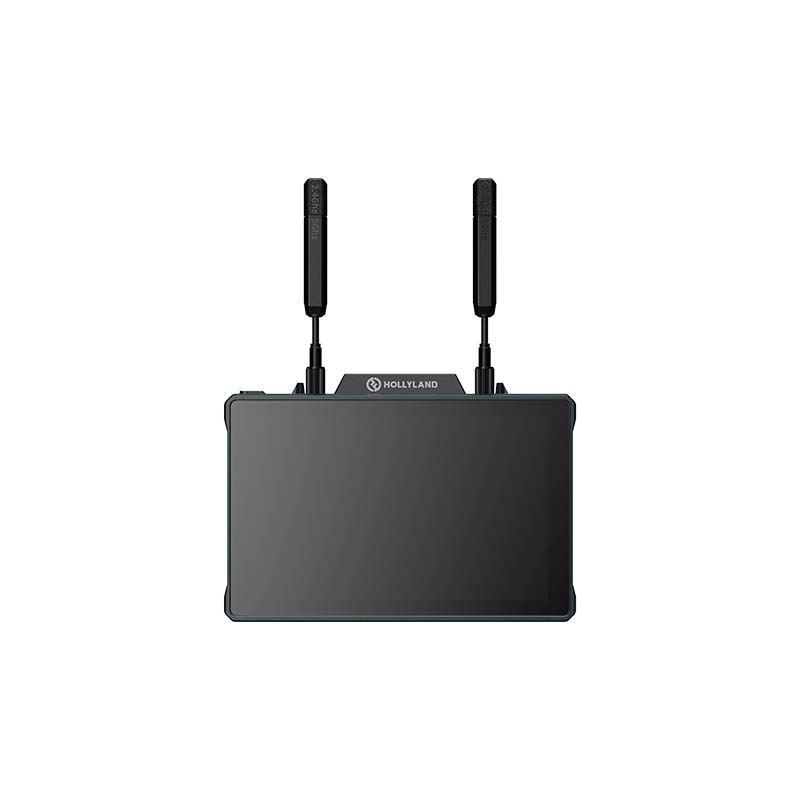

Hollyland Pyro 7 Wireless Transceiver Monitor
Fuel Your Connections Pyro 7
Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.
WifiBroadcast Technology 4 Receivers. Not an Issue.
More Flexible. Meet More Monitoring Needs.
Pyro 7’s WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.
Broadcast Mode Activated
When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.
Deactivated
See Real-time Footage Quick Monitoring Switch

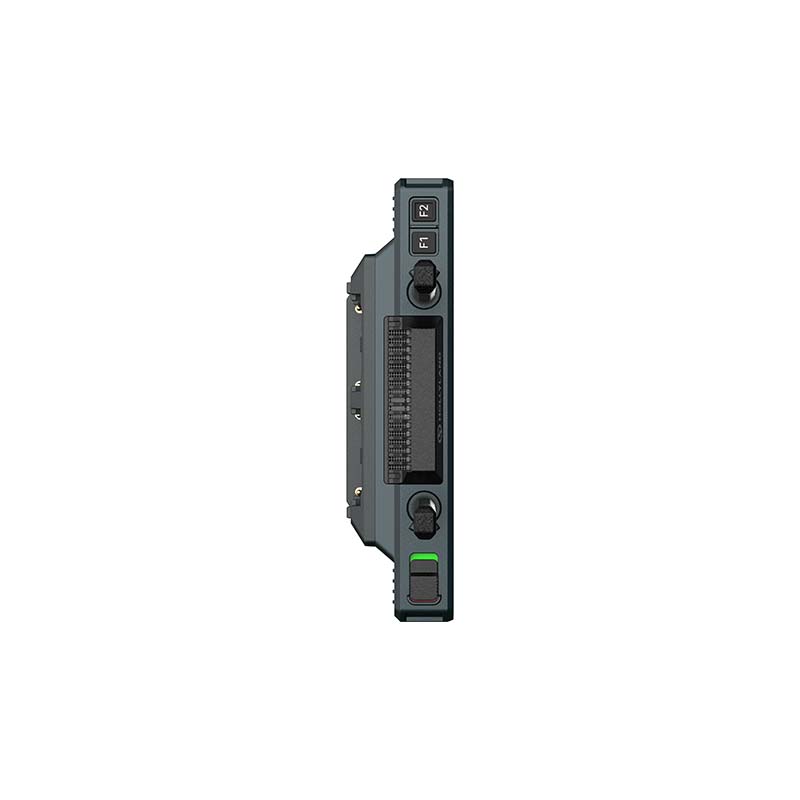

Pyro 7 enables seamless connection with Pyro series video transmission solution after grouping preset. You can swiftly switch between dual camera views for monitoring within 1 second by utilizing two customizable buttons.
Dual Boost
Faster.
Longer.
Stronger.
With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro 7 features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.
Dual Boosts. Less Latency and More Stability.
Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.
ADH Auto Dual-Band Hopping
With our developed Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.
Dual Band 2.4 GHz & 5 GHz.
Pyro 7 offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro 7, you won’t have to worry about video drop issues any more.
Intelligent Auto Frequency Hopping
Pyro 7 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
What’s New? Have a look.
More Possibilities Expanding Functionality Enhanced Features
Pyro 7 supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card, allowing for convenient on-site monitoring and increased work efficiency. Additionally, it offers the option to apply LUT during video export. Furthermore, Pyro 7 enables efficient export and organization of available videos into specific folders, catering to your needs for streamlined editing workflow.
*It also supports importing external devices or taking on-set screenshots, overlaying them with the current recording screen for scene restoration or replication purposes.
7-inch See Every Detail Clearly
* The iPad and iPhone shown for size reference are not included in the Pyro 7 package.
The 7-inch screen provides a more comfortable monitoring experience. With a brightness of 1200 nits, whether indoors or outdoors, in bright sunlight or dim environments, you can adjust the screen brightness for optimal visual performance.
Seamless Connectivity HDMI and SDI Input/Output/ Loopout

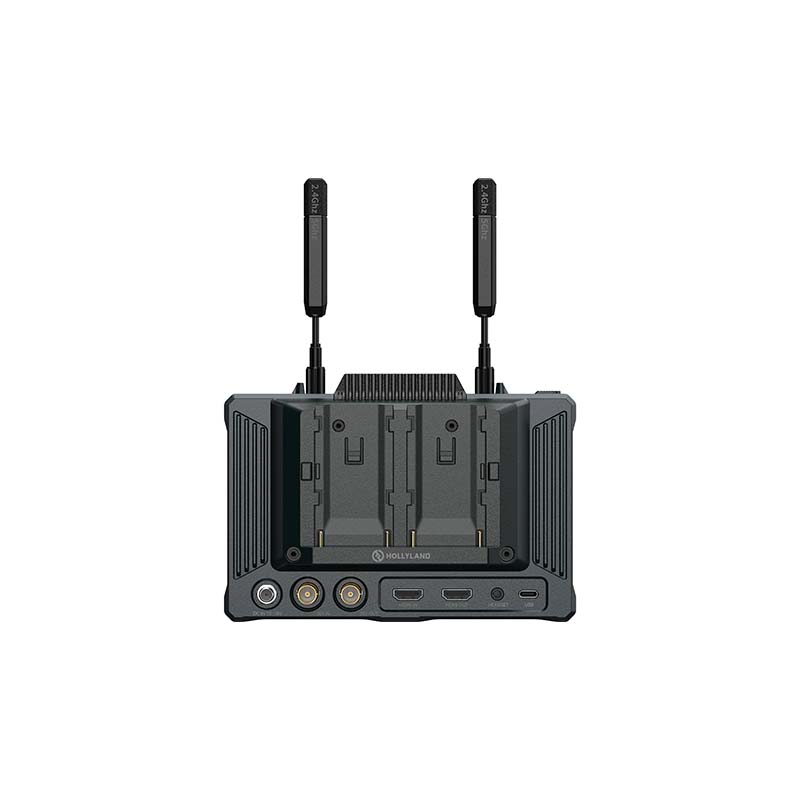

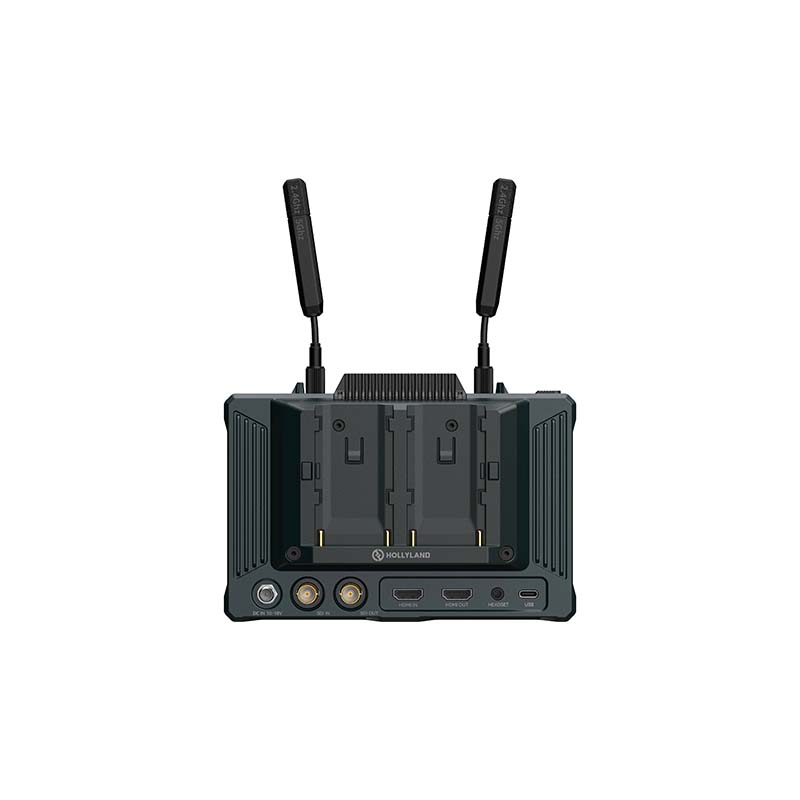

Pyro 7 is the perfect solution for professional shooting and smaller commercial projects. The transmitter features one HDMI input, one SDI input, and one HDMI loopout, while the receiver provides one SDI output, one HDMI output, and one SDI loopout.
NP-F Battery Plate
G-Mount Battery Plate (optional)
V-Mount Battery Plate (optional)
Interference-free Smart Channel Scan.
Upon startup, Pyro 7 automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the device to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.
Preset Grouping & Pairing Easy Setup. Ready to Go.
Pyro 7 supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.
Real-Time Messaging Protocol RTMP Streaming
With the HollyView App and the power of RTMP (Real-Time Messaging Protocol), just input your wireless key and connect 4G LTE Wi-Fi Modem to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro 7 will offer you a convenient live streaming experience.
Fuel Your Connections Pyro 7
Bundle Packing List
This bundle includes two flagship products: Pyro S and Pyro 7, along with a thoughtfully selected set of film accessories.
What’s in the Box
Pyro 7 Wireless Transceiving Monitor
Wireless Transceiving Monitor x1
Paddle Antenna (2.4 GHz & 5 GHz) x2
Secure Digital Memory Card (32G) x1
D-Tap to Locking DC Power Adapter Cable x1
USB-C OTG Adapter x1
User Manual x1
Warranty Card x1
Specifications
INPUT PORT
HDMI 1.4b + 3G SDI
OUTPUT PORT
HDMI 1.4b + 3G SDI
ANTENNA
RP-SMA Male*2
POWER INPUT
DC Input (2.0mm core socket)
HEADPHONE JACK
3.5mm
UPGRADE PORT
- USB-C (USB 2.0 OTG)
- SD Card Slot
SCREEN SIZE
7″ Touchscreen
SCREEN RESOLUTION
1920 × 1200 pixels
PIXEL DENSITY
323 PPI
ASPECT RATIO
16:9
SCREEN BRIGHTNESS
1200 nits
CONTRAST RATIO
1000:1
POWER INPUT VOLTAGE
10 – 18V/2.5A DC Input (nominal 12V)
POWER CONSUMPTION
< 22W
NET WEIGHT
545g (19.2oz)
with battery plate included and external antennas excluded
DIMENSIONS (L × W × H)
180 × 127 × 31.8mm (7.1″ × 5″ × 1.25″)
with battery plate and external antennas excluded
OPERATING FREQUENCY
5.1 – 5.8 GHz; 2.412 – 2.484 GHz
TRANSMIT POWER
≤ 23 dBm
RECEIVER SENSITIVITY
-80 dBm
DISPLAY LATENCY
< 50ms
TRANSMISSION LATENCY
≈ 60ms (test data when 1080p60 signals are transmitted in a laboratory)
LOS RANGE
- 1,300ft (400m)* (Connection to the monitoring app may affect the range);
- •650ft (200m)* (in Broadcast mode)
BANDWIDTH
20 MHz; 40 MHz (in Broadcast mode)
AUDIO FORMAT
HDMI 1.4b 8-Channel
OPERATING TEMPERATURE
– 10℃ – 45℃
STORAGE TEMPERATURE
– 40℃ – 60℃
HDMI INPUT
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p50/59.94/60
- 3840*2160 23.98/24/25/29.97/30
HDMI Loopout
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p50/59.94/60
- 3840*2160 23.98/24/25/29.97/30
SDI Loopout
- 720p50/60
- 1080i50/60
- 1080p24/25/30
- 1080p 50/60
- 1920*1080 24/25/30
HDMI/SDI Output
- 720p50/60
- 1080i50/60
- 1080p24/25/30
- 1080p 50/60
- 1920*1080 24/25/30
SDI Input
- 1080p50/59.94/60 (Level A)
- 1080p50/59.94/60 (Level B)
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080psf23.98/24
- 1080psf25/29.97/30
- 720p50/59.94/60
HDMI/SDI Loopout
- 1080p50/59.94/60 (Level A)
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p23.98/24
- 1080i50/59.94/60
- 720p50/59.94/60
HDMI/SDI Output
- 1080p50/59.94/60 (Level A)
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p23.98/24
- 1080i50/59.94/60
- 720p50/59.94/60
