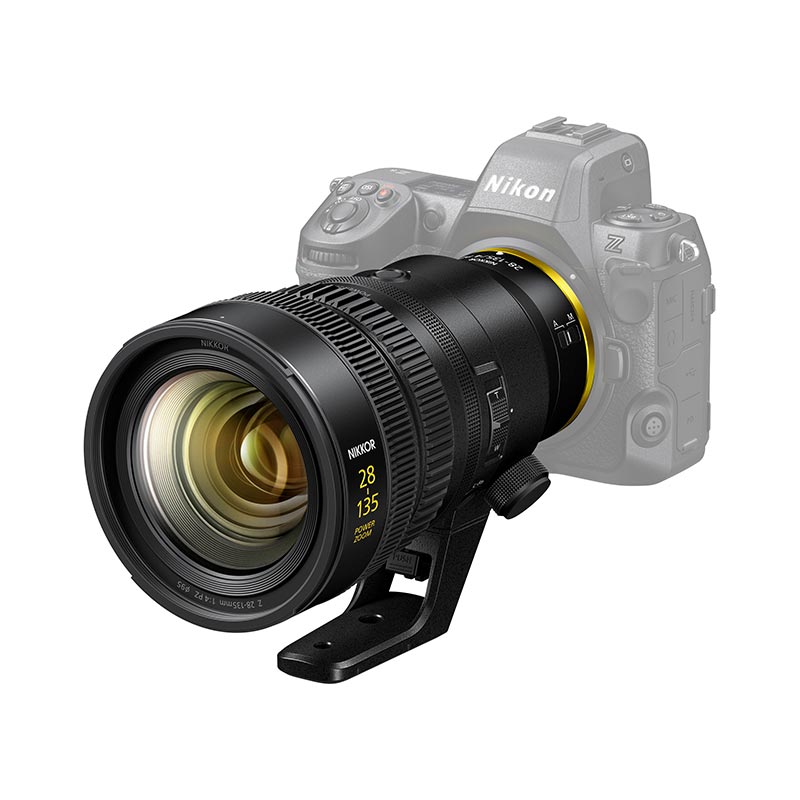

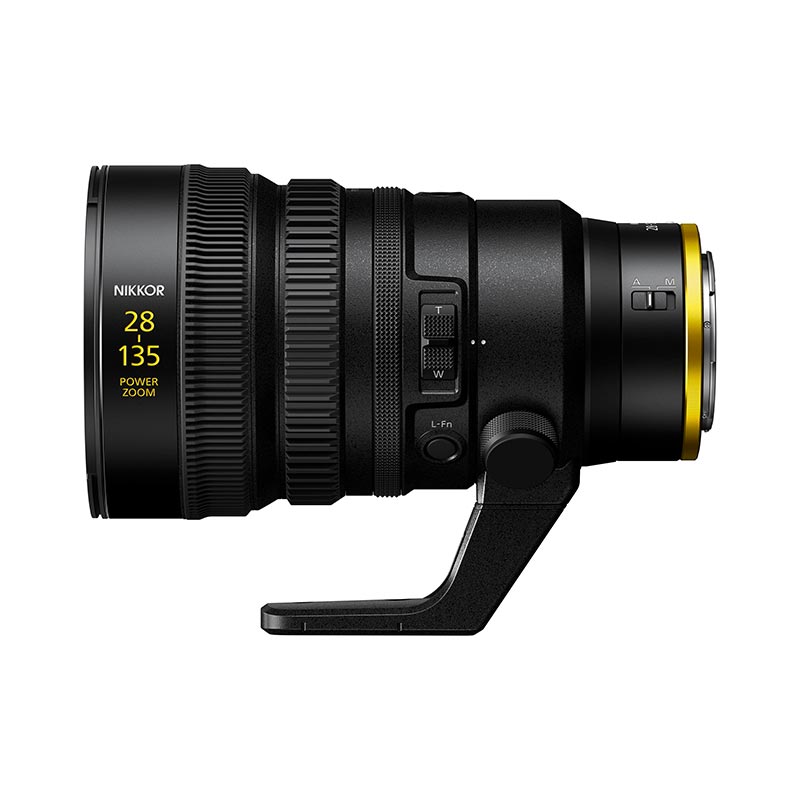

Nikon NIKKOR Z 28-135mm f/4 PZ Lens
Key Features
- Full Frame | f/4 to f/22
- Wide to Tele Power Zoom
- Stepping Motor AF System
- Power Zoom Functionality
- Programmable Control Ring & L-Fn Buttons
- Meso Amorphous Coating
- Internal Zoom Mechanism
- 13.4″ Minimum Focusing Distance
- Rotatable Tripod Collar
- Rectangular Lens Hood w/ Filter Window
Delivering superior optical performance and power zoom functionality across multiple essential focal lengths, the full-frame NIKKOR Z 28-135mm f/4 PZ Lens from Nikon is a versatile, all-in-one performer equally adept in corporate videos, documentaries, live events, weddings, and more.
Optimized Zoom Performance
Nikon’s First FX Power Zoom
Not only is this Nikon’s first FX-format power zoom lens, but it’s the first NIKKOR Z lens with a zoom lever, allowing videographers to achieve smooth zooms and select from up to eleven different zoom speeds. The power zoom function helps users achieve smooth zooming at a constant speed and enables various options for zoom operation, including remote control of the zoom function with a computer, smartphone, or tablet by using the NX Tether software and the SnapBridge or NX Field apps. Remote control is also possible with the optional MC-N10 video grip.
Hi-Res Zoom Compatibility
When used with the Nikon Z9 or Z8, Hi-Res Zoom can be implemented, allowing an angle of view equivalent to that of the 270mm focal length with 4K video recording.
Extensive Image Quality Control

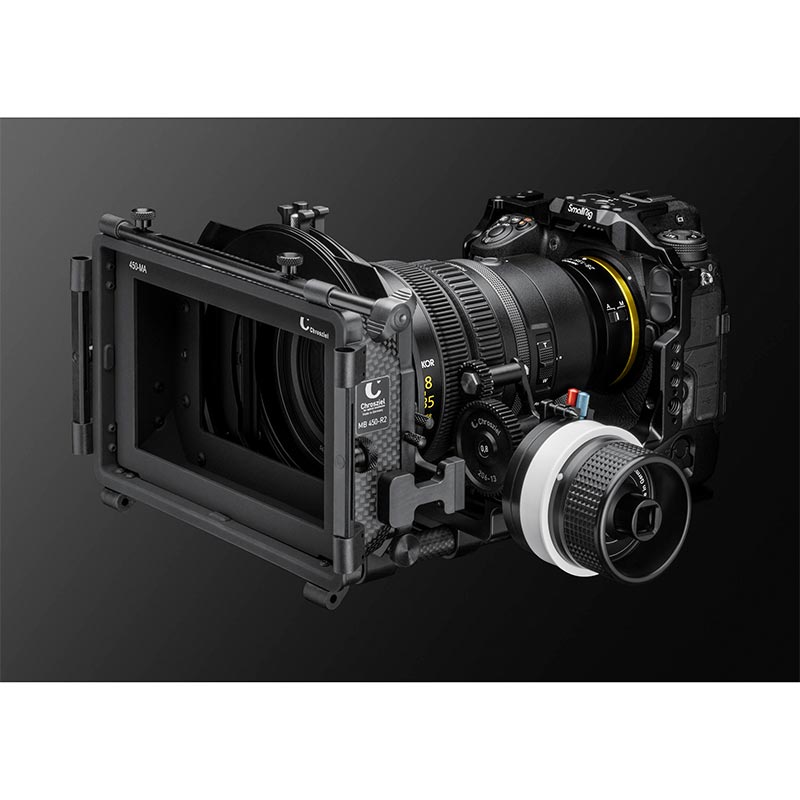

The NIKKOR Z 28-135mm f/4 PZ uses a stepping motor (STM) for speedy and quiet autofocus adjustment, which ideal for on-the-run, documentary-style shooting. Support for linear focus allows users to dial in the exact desired rotation of the focus or control ring for precise focus moves. Focus breathing is highly suppressed, maintaining the angle of view and composition even during extreme focus pulls. The large, ergonomic focus ring benefits precise manual focus adjustments, while the knurled focus and zoom rings are directly compatible with follow-focus accessories.
Design and Construction
Optical Design
The lens has a compact, lightweight design for its class, coming in at a balanced 2.66 lb and combining with the internal focusing mechanism to optimize for use with gimbals and other support systems. Internally, the lens features three extra-low dispersion elements and four aspherical elements, reducing chromatic aberrations and promoting sharpness in the imagery. The incorporation of Nikon’s Meso Amorphous Coat, the brand’s highest-performing antireflection system, suppresses ghosting and flare caused by incident light from any direction.
The constant f/4 maximum aperture benefits low depth-of-field effects and subject separation, while the minimum close-focusing distances of 13.4″ on the wide end and 22.4″ at the tele end allow for dynamic close-ups and Nikon’s distinctive bokeh.
Build and Other Benefits

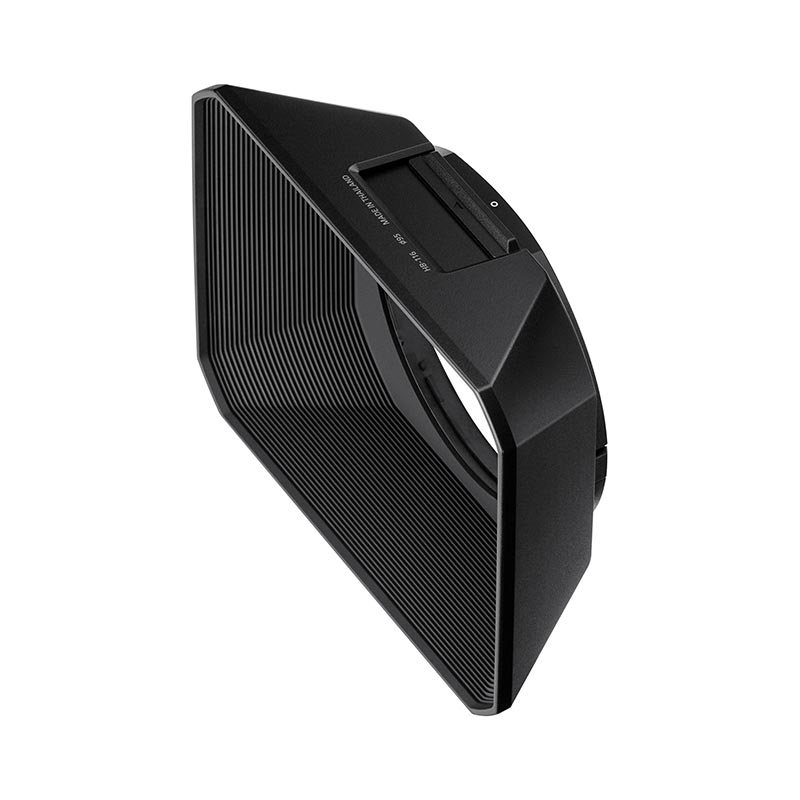

- An included rectangular lens hood helps reduce unwanted light entering the lens and causing flare, while a filter adjustment window allows for convenient exchanges between circular polarizing and variable ND filters without needing to remove the hood.
- A fluorine coating is applied to the front lens element, so dust, oil, and water are effectively repelled, contributing to its dust- and drip-resistant design.
- L-Fn buttons, to which functions like zoom speed can be assigned, are positioned on the side and top of the lens for smooth operation even when shooting in a vertical orientation.
- The zoom ring angle and direction of rotation are customizable for further optimization.
- Support for linear MF drive enables smooth focusing.
- The lens features a distinctive Nikon yellow video ring around its mount, along with special lettering.
