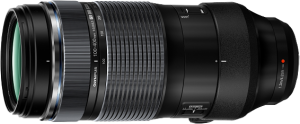

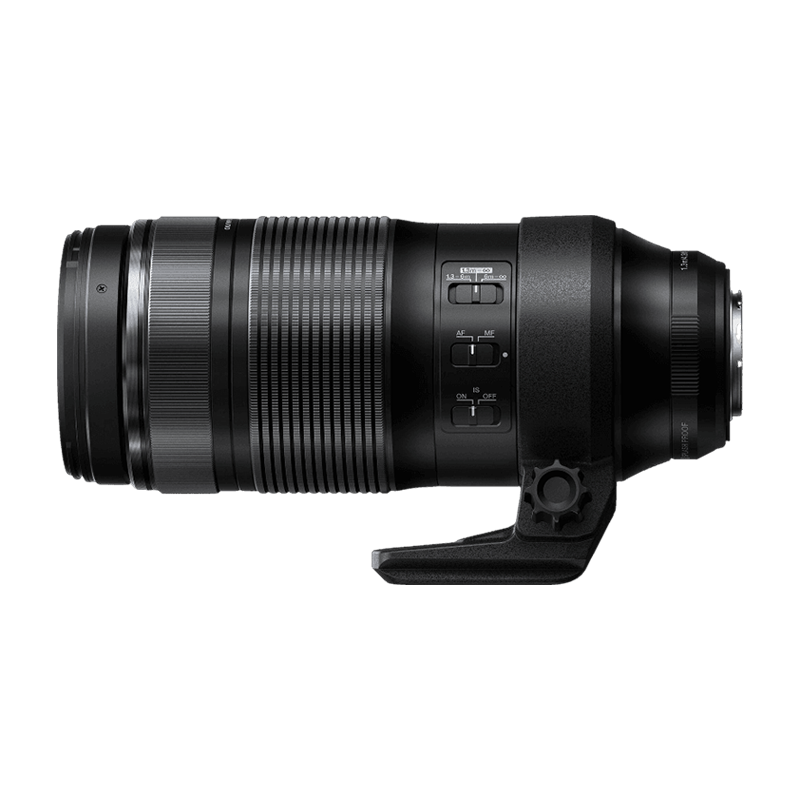

LYMPUS M.Zuiko Digital ED 100-400mm F5.0-6.3 IS

Compact, lightweight zoom lens for shooting in the 200 to 800mm equivalent [1] telephoto range

This high-performance zoom lens offers super telephoto performance in a 200 to 800mm equivalent. range in a compact, lightweight form. Amazing super telephoto shooting up to 1600mm equivalent. is possible when using the optional 2x Teleconverter MC-20. It offers excellent optical and depictive performance across the entire zoom range and superb close-up shooting performance. It also features dustproof and splashproof performance to rival PRO lenses, delivering high image quality super telephoto shooting across a wide range of fields.

Features

● Super Telephoto Shooting up to 1600mm Equivalent

  • Covers a wide range of telephoto shooting equivalent to 200 to 800mm[1] with the lens on its own
  • Max. 1600mm equivalent[1] super telephoto shooting with a teleconverter
  • Powerful telemacro shooting

● Superb Optical Design with Worry-free Dustproof and Splashproof Performance

  • Optical design with super telephoto capabilities in a compact form
  • Excellent depictive performance across the entire zoom range
  • The same dustproof and splashproof performance as the PRO lens series

● Comfortable AF Performance and In-lens Image Stabilisation

  • Comfortable AF in the super telephoto range
  • In-lens image stabilisation

Basic Information

Product name M.Zuiko Digital ED 100-400mm F5.0-6.3 IS
/200-800mm (35mm equivalent)
Box contents LH-76D Lens Hood, LC-72D Lens Cap, LR-2 Lens Rear Cap, Instruction Manual and Olympus Warranty Card
Optional Accessories Zuiko PRF-ZD72 PRO Protection Filter, LH-76D Lens Hood, LC-72C Lens Cap, LR-2 Lens Rear Cap, LSC-1127 Lens Case, DR-79 Decoration Ring

Super Telephoto Shooting up to 1600mm Equivalent

200 to 800mm equivalent super telephoto shooting is possible with the lens on its own, and up to 1600mm equivalent super telephoto shooting when using the optional 2x Teleconverter MC-20. You can enjoy great telemacro and versatile super telephoto shooting.

Powerful telemacro shooting

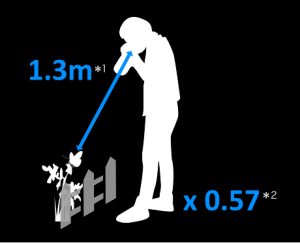

Superb telemacro performance with a closest focusing distance of 1.3 m (entire zoom range) and a maximum image magnification of 0.57x is now possible. Attach optional Teleconverter MC-14/MC-20 lenses to shoot at a maximum image magnification of 0.81x when using MC-14, and 1.15x when using MC-20. This combination enables powerful telemacro shooting at an image magnification equivalent to a macro lens.

Also supports Focus Stacking

Focus Stacking is also supported, which captures multiple shots at different focal positions, then automatically composites the shot. Capture a photo with a large depths of field that is in focus from the foreground to background using the super telephoto macro range

Superb Optical Design with Worry-free Dustproof and Splashproof Performance

This lens delivers stable high image quality across the entire zoom range equivalent to 200 to 800mm. It also features dustproof and splashproof performance for peace of mind.

Optical design with super telephoto capabilities in a compact form

The highly compact, lightweight optical design makes for a portable size that is only 205.7 mm long, weighing 1,120 g*, while achieving 800mm equivalent super telephoto performance. Without Tripod Adapter, Lens Cap, Lens Rear Cap, Lens Hood

Excellent depictive performance across the entire zoom range

Four ED lenses are lavishly used to suppress color bleeding along with 2 Super HR lenses and 2 HR lenses for bright, clear depictive performance to the edges of the image across the entire zoom range. ZERO Coating is also used to reduce ghosts and flares for clear image quality even in poor conditions such as backlit scenes.

he same dustproof and splashproof performance as the PRO lens series

Extensive hermetic sealing on the entire lens barrel delivers the same high level of dustproof and splashproof performance as the M.Zuiko PRO series. This design keeps out dust and moisture for peace of mind when shooting in any environment.

In-lens image stabilisation

This product is equipped with in-lens image stabilisation, which is useful in the telephoto range, making stable shooting possible with minimal negative effects of hand shake on any camera body.

  • ※ This product is not compatible with the 5-axis sync IS that works with in-body 5-axis image stabilisation.
  • ※ Use of in-lens image stabilisation is recommended for super telephoto shooting.

Equipment used E-M1 Mark II
Focal length 400mm (35 mm equivalent focal length:800mm)
Shutter speed 1/250 sec.
Aperture value F6.3
ISO sensitivity 500
Image size 5184 x 3888
Equipment used E-M1 Mark III
Focal length 236mm (35 mm equivalent focal length:472mm)
Shutter speed 1/250 sec.
Aperture value F6.3
ISO sensitivity 800
Image size 5184 x 3888
Equipment used E-M1 Mark III
MC-20 2x Teleconverter
Focal length 800mm (35 mm equivalent focal length:1600mm)
Shutter speed 1/400 sec.
Aperture value F13
ISO sensitivity 800
Image size 5184 x 3888



Specification

Focal Length 100-400mm (35mm Equivalent Focal Length: 200-800mm)
Lens Construction 21 elements in 15 groups (4 ED lenses, 2 Super HR lenses, 2 HR lenses)
Splashproof Type / Dustproof IEC Standard publication 60529 IPX1
(applies when the lens is used with Olympus splashproof Body) / Dustproof construction
Focusing System High-speed Imager AF (MSC)
Angle of View 12 degrees – 3.1 degrees
Closest Focusing Distance 1.3 m (entire zoom range)
Maximum Image Magnification 0.09x (wide) / 0.29x (tele)
35mm Equivalent Max. Image Magnification 0.17x (wide) / 0.57x (tele)
Minimum Field Size 202.4×152.1mm (Wide) / 60.3×45.3mm (Tele)
Number of Blades 9 (circular aperture diaphragm)
Maximum Aperture F5.0 (100mm) to F6.3 (400mm)
Minimum Aperture F22
Lens IS Mechanism VCM
IS Performance Lens IS 3 steps*

  • According to CIPA standards. With yaw and pitch applied and focal length set to 400mm.

Non supported 5-axis sync IS*

  • IS switch
    ON: The stabilisation function of the lens operates.
    OFF: The stabilisation function of the lens is off. The stabilisation function of the camera operates according to the setting on the camera. If you do not want to use the stabilisation function, disable the function on both the camera and the lens.
Filter Size Diameter72mm
Dimensions ⌀86.4×205.7mm
Weight 1,120g (without Tripod Adapter) / 1,325g (with Tripod Adapter)
Box Contents LH-76D Lens Hood, LC-72D Lens Cap, LR-2 Lens Rear Cap, Instruction Manual, Warranty Card

Depth of field

When focusing on a subject, there is an area behind and in front of the focused point that is also in focus. This area is called depth of field. The amount of area behind a focused point will always be greater than the area in front of the focused point regardless of aperture. Depth of field becomes deeper when the focal length is short (wide-angle lens), the focusing distance is long, and aperture is small.

Depth of field tables (wide-end focal length: 100mm)

  • Columns: aperture values / Rows: focusing distance (m)
  • The diameter of the permissible circle of confusion is 1/60mm.

1.3		 1.6 2 3 5 7 10 20 30 ∞
5.0 1.289
～
1.312		 1.582
～
1.618		 1.971
～
2.030		 2.933
～
3.070		 4.811
～
5.205		 6.631
～
7.415		 9.256
～
10.88		 17.20
～
23.90		 24.10
～
39.77		 121.4
～
∞
5.6 1.287
～
1.313		 1.580
～
1.620		 1.968
～
2.033		 2.926
～
3.078		 4.791
～
5.229		 6.592
～
7.463		 9.181
～
10.98		 16.94
～
24.42		 23.59
～
41.25		 109.4
～
∞
8.0 1.282
～
1.318		 1.572
～
1.629		 1.955
～
2.047		 2.896
～
3.112		 4.710
～
5.330		 6.438
～
7.674		 8.881
～
11.45		 15.93
～
26.91		 21.67
～
48.90		 77.50
～
∞
11 1.275
～
1.326		 1.561
～
1.642		 1.937
～
2.067		 2.856
～
3.161		 4.600
～
5.481		 6.231
～
7.994		 8.489
～
12.19		 14.70
～
31.42		 19.45
～
66.24		 54.88
～
∞
16 1.265
～
1.338		 1.545
～
1.659		 1.913
～
2.097		 2.800
～
3.233		 4.453
～
5.709		 5.961
～
8.497		 7.991
～
13.41		 13.26
～
41.20		 16.99
～
133.2		 38.86
～
∞
22 1.251
～
1.354		 1.524
～
1.686		 1.879
～
2.140		 2.726
～
3.342		 4.262
～
6.068		 5.619
～
9.331		 7.381
～
15.64		 11.64
～
73.90		 14.42
～
∞		 27.54
～
∞

Depth of field tables (middle focal length: 200mm)

  • Columns: aperture values / Rows: focusing distance (m)
  • The diameter of the permissible circle of confusion is 1/60mm.

1.3		 1.6 2 3 5 7 10 20 30 ∞
5.9 1.296
～
1.304		 1.594
～
1.606		 1.990
～
2.010		 2.978
～
3.022		 4.940
～
5.062		 6.882
～
7.122		 9.760
～
10.25		 19.06
～
21.04		 27.92
～
32.41		 403.0
～
∞
8.0 1.295
～
1.305		 1.592
～
1.608		 1.987
～
2.013		 2.971
～
3.030		 4.919
～
5.084		 6.842
～
7.165		 9.680
～
10.34		 18.76
～
21.42		 27.28
～
33.33		 300.3
～
∞
11 1.293
～
1.308		 1.589
～
1.612		 1.982
～
2.018		 2.959
～
3.042		 4.887
～
5.119		 6.779
～
7.237		 9.554
～
10.49		 18.29
～
22.08		 26.30
～
34.94		 212.5
～
∞
16 1.290
～
1.311		 1.584
～
1.616		 1.975
～
2.026		 2.943
～
3.060		 4.841
～
5.170		 6.692
～
7.340		 9.381
～
10.71		 17.66
～
23.07		 25.02
～
37.50		 150.4
～
∞
22 1.285
～
1.315		 1.577
～
1.623		 1.964
～
2.037		 2.920
～
3.085		 4.779
～
5.244		 6.573
～
7.491		 9.147
～
11.04		 16.85
～
24.65		 23.42
～
41.85		 106.4
～
∞

Depth of field tables (tele-end focal length: 400mm)

  • Columns: aperture values / Rows: focusing distance (m)
  • The diameter of the permissible circle of confusion is 1/60mm.

1.3		 1.6 2 3 5 7 10 20 30 ∞
6.3 1.299
～
1.301		 1.598
～
1.602		 1.997
～
2.003		 2.993
～
3.007		 4.982
～
5.019		 6.964
～
7.036		 9.928
～
10.07		 19.71
～
20.29		 29.36
～
30.67		 1387
～
∞
8.0 1.298
～
1.302		 1.598
～
1.602		 1.996
～
2.004		 2.992
～
3.008		 4.977
～
5.023		 6.956
～
7.045		 9.911
～
10.09		 19.65
～
20.37		 29.22
～
30.83		 1124
～
∞
11 1.298
～
1.302		 1.596
～
1.604		 1.995
～
2.005		 2.988
～
3.012		 4.968
～
5.033		 6.938
～
7.06		 9.874
～
10.13		 19.51
～
20.52		 28.90
～
31.19		 795.2
～
∞
16 1.297
～
1.303		 1.595
～
1.605		 1.992
～
2.008		 2.983
～
3.017		 4.955
～
5.046		 6.912
～
7.090		 9.823
～
10.18		 19.31
～
20.75		 28.47
～
31.71		 562.4
～
∞
22 1.295
～
1.305		 1.593
～
1.607		 1.989
～
2.011		 2.977
～
3.024		 4.936
～
5.066		 6.877
～
7.128		 9.752
～
10.26		 19.04
～
21.07		 27.89
～
32.47		 397.9
～
∞
