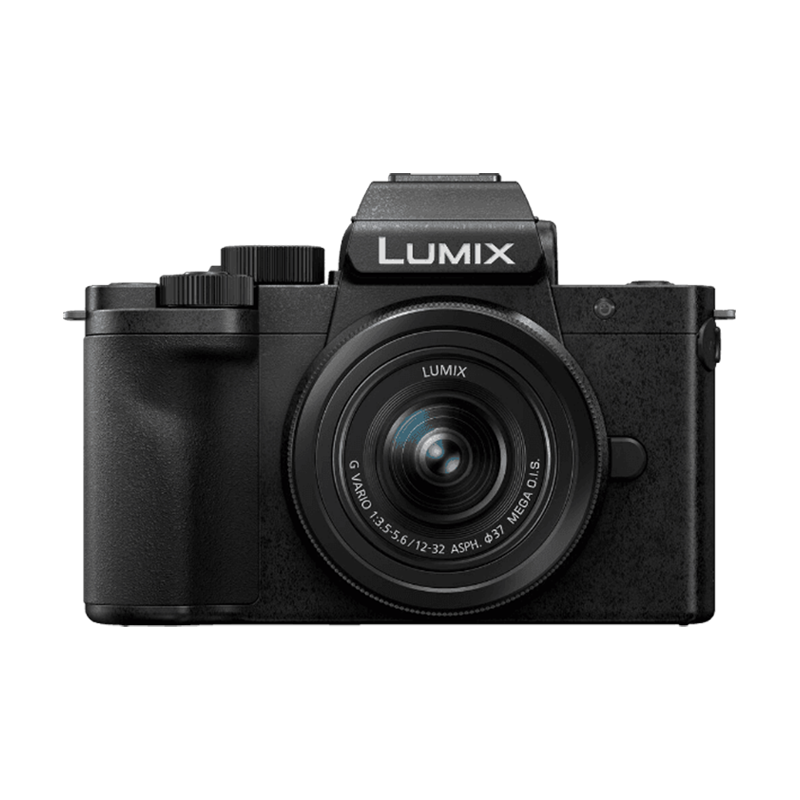

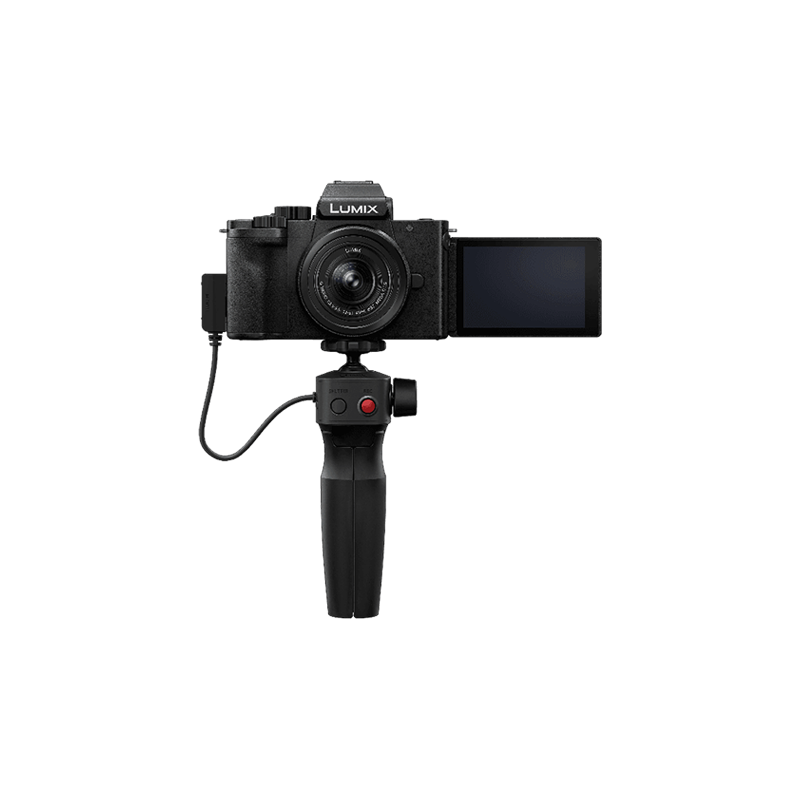

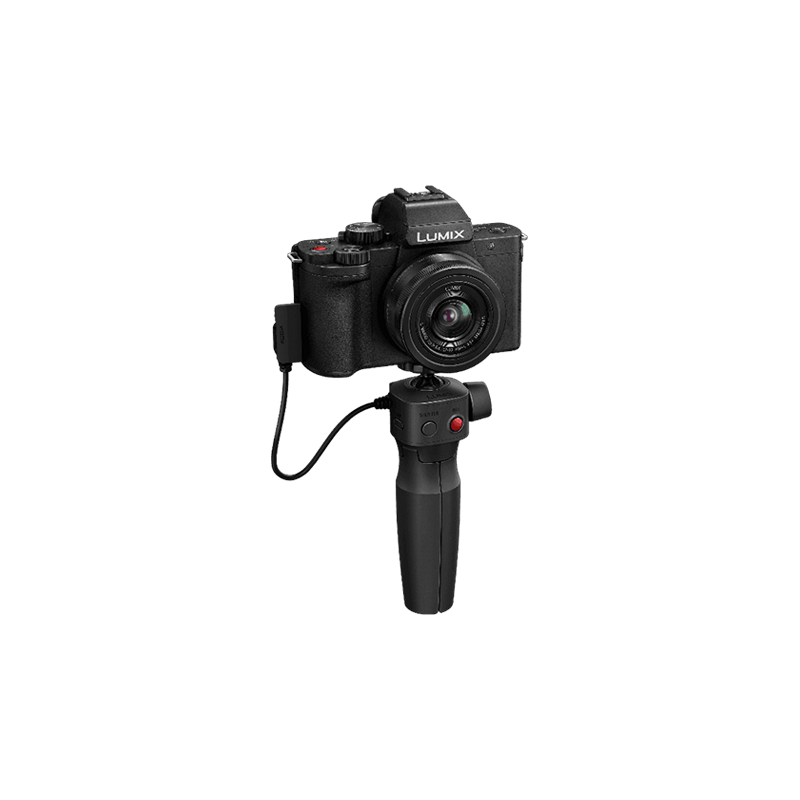

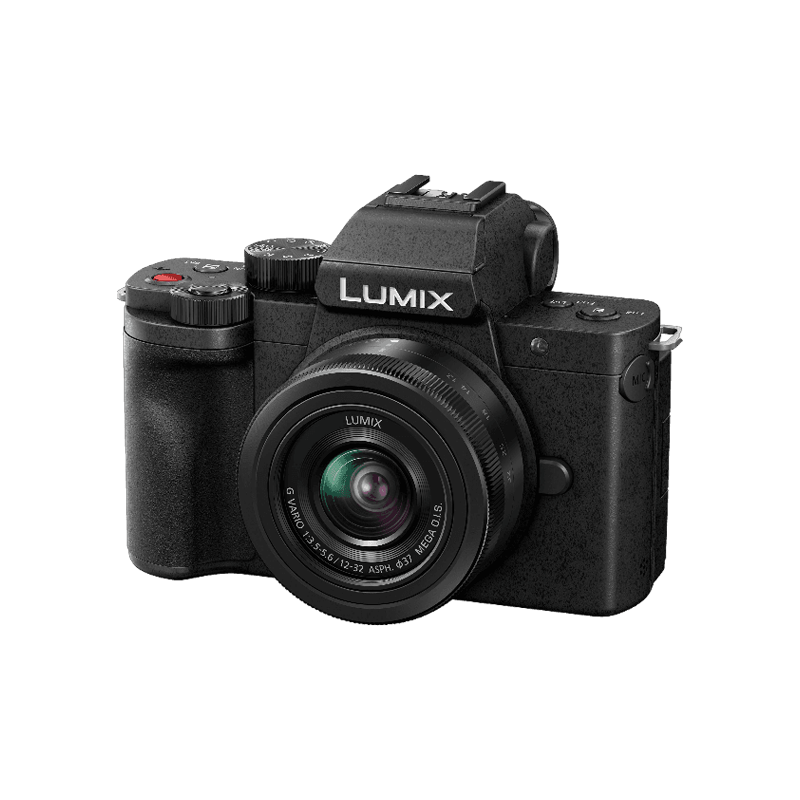

PANASONIC Lumix DC-G100D kit 12-32mm f/3.5-5.6 ASPH + Tripod Grip Kit

Specification

• Brand

  PANASONIC

• Specifications



  TYPE

  • Type
    • Digital Single Lens Mirrorless camera
  • Recording media
    • SD Memory Card, SDHC Memory Card, SDXC Memory Card
      (Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards.)
  • Image sensor size
    • 17.3 x 13.0 mm (in 4:3 aspect ratio)
  • Lens mount
    • Micro Four Thirds mount

  IMAGE SENSOR

  • Type
    • Live MOS Sensor
  • Total pixels
    • 21.77 megapixels
  • Camera effective pixels
    • 20.30 megapixels
  • Colour filter
    • Primary colour filter
  • Dust reduction system
    • No

  LATITUDE

  • 12 stops (V-Log L)

  IMAGE STABILIZATION SYSTEM

  • 5-axis HYBRID I.S. *For video recording only. 4-axis compensation works in 4K video recording.

  RECORDING SYSTEM

  • Recording file format
    • Still image
      • JPEG (DCF, Exif 2.31), RAW
    • 4K PHOTO**
      • MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
        Extracted still images: JPEG (DCF, Exif 2.31)
    • Motion picture
      • MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
  • Aspect ratio
    • 4:3, 3:2, 16:9, 1:1
  • Image quality
    • RAW, RAW+Fine, RAW+Standard, Fine, Standard
  • Colour space
    • sRGB, AdobeRGB
  • File size (Pixels)
    • Still image
      • [4:3] 5184×3888(L) / 3712×2784(M) / 2624×1968(S) / 3328×2496(4K PHOTO)
      • [3:2] 5184×3456(L) / 3712×2480(M) / 2624×1752(S) / 3504×2336(4K PHOTO)
      • [16:9] 5184×2920(L) / 3840×2160(M) / 1920×1080(S) / 3840×2160(4K PHOTO)
      • [1:1] 3888×3888(L) / 2784×2784(M) / 1968×1968(S) / 2880×2880(4K PHOTO)
    • Motion picture** MP4** [4K] 3840×2160
      • 4K/30p: 100Mbps
      • 4K/25p: 100Mbps
      • 4K/24p: 100Mbps
    • Motion picture** MP4** [Full HD] 1920×1080
      • FHD/60p: 28Mbps
      • FHD/50p: 28Mbps
      • FHD/30p: 20Mbps
      • FHD/25p: 20Mbps
      • FHD/24p: 24Mbps
    • Motion picture** MP4** [HD] 1280×720
      • HD/30p: 10Mbps
      • HD/25p: 10Mbps
    • Slow & Quick** MP4** [Full HD] 1920×1080
      • 60p (1/2 / 2x / 4x / 8x)
      • 30p (1/4 / 1/2 / 2x / 4x / 8x)

  VIEWFINDER

  • Type
    • OLED Live View Finder
  • Pixels
    • Approx. 2,360k dots
  • Field of view / Magnification
    • Approx. 100% / Approx. 1.48x / 0.74x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
  • Eye point / Diopter adjustment
    • Approx. 20 mm at infinity; -1.0 m-1 / -4.0 – +4.0 (dpt)
  • Eye sensor
    • Yes

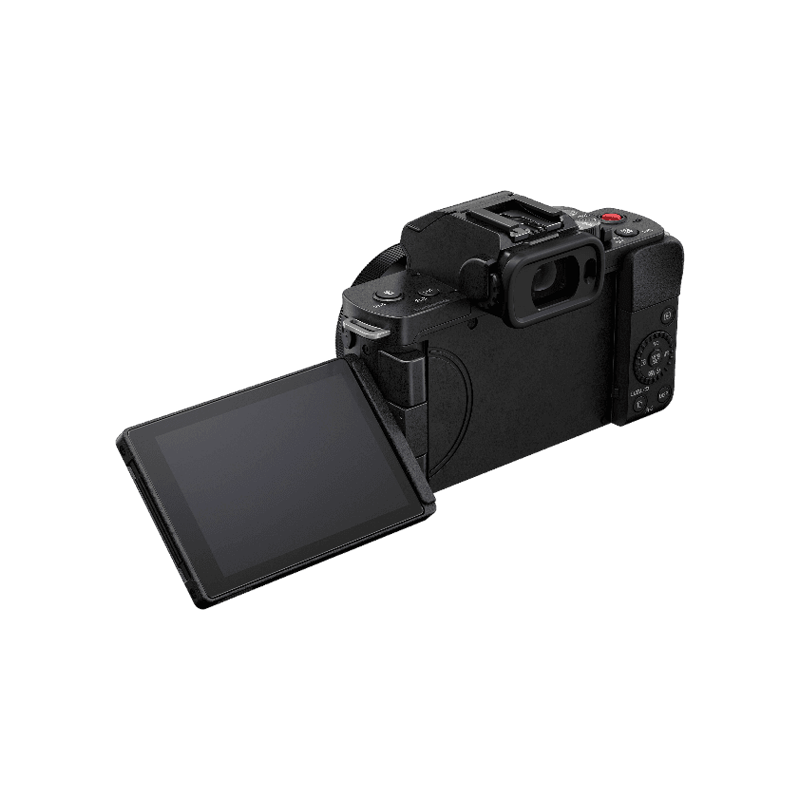

  REAR MONITOR

  • Type
    • TFT LCD monitor with static touch control
  • Monitor size
    • Free-angle, 7.5cm (3.0-inch), 3:2 aspect
  • Pixels
    • Approx. 1,840k dots
  • Field of view
    • Approx. 100%

  FOCUS

  • Type
    • Contrast AF system
  • DFD technology
    • Yes
  • Focus mode
    • AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
  • AF mode
    • Face/Eye Detection / Tracking / 49-Area / Custom Multi / 1-Area / Pinpoint
      (Full area touch is available) (Scalable AF frame size and flexible AF position)
  • AF detective range
    • EV -4 – 20 (F2.0, ISO100 equivalent, AFS)
  • Starlight AF
    • Yes
  • AF assist lamp
    • Yes
  • AF lock
    • Set the Fn button in custom menu to AF lock
  • Post Focus / Focus Stacking
    • Yes / Yes
  • Others
    • AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Loop Movement Focus Frame, Lens Focus Resume

  EXPOSURE CONTROL

  • Light metering system
    • 1728-zone multi-pattern sensing system
  • Light metering mode
    • Multiple / Center Weighted / Spot
  • Metering range
    • EV 0 – 18 (F2.0 lens, ISO100 equivalent)
  • Mode dial
    • Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / S&Q / Custom / Scene Guide / Creative Control / Intelligent Auto / Intelligent Auto Plus
      *The same exposure operations as P/A/S/M mode is available.
  • ISO sensitivity (Standard output sensitivity)
    • Still image: Auto / i.ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
      Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 (Changeable to 1/3 EV step)
  • Exposure compensation
    • 1/3 EV step, ±5EV (±3 EV for motion picture)
  • AE lock
    • Set the Fn button in custom menu to AE lock

  WHITE BALANCE

  • White balance
    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4
  • White balance adjustment
    • Blue/Amber bias, Magenta/Green bias
  • Colour temperature setting
    • 2500-10000K in 100K

  SHUTTER

  • Type
    • Electronically-control focal-plane shutter
  • Shutter speed
    • Still image: Time (Max. 60 second), 1/16,000 – 60
    • Motion picture: 1/16,000 – 1/25
    • Creative Video M mode / MF mode: 1/16,000 – 1/2
  • Live View Composite
    • 1/2 – 60
  • Self timer
    • 10sec, 3 images / 2sec / 10sec
  • Silent mode / Shutter type
    • Yes / Yes (Auto / Electronic front curtain / Electronic)

  BRACKET

  • AE bracket
    • 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
  • Aperture bracket
    • 3, 5 or all positions in 1 EV step
  • Focus bracket
    • 1 to 999 images, focus steps can be set in 10 levels
  • White balance bracket
    • 3 images in blue/amber axis or in magenta/green axis, colour temperature setting

  BURST SHOOTING

  • Burst speed
    • [Electronic first curtain shutter]
    • AFS/MF: H: 6 frames/sec, M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    • AFF/AFC: H: 5 frames/sec, M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View) [Electronic shutter]
    • AFS/MF: H: 10 frames/sec, M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    • AFF/AFC: H: 10 frames/sec, M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View)
  • Number of recordable images
    • RAW / RAW+JPEG: More than 20 images
    • JPEG: More than 480 images (When using a card with SD Speed Class with “UHS-I UHS Speed Class 3 (U3)”.)
      * Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.

  4K PHOTO**

  • Burst speed
    • 30 frames/sec
  • Exif information
    • Yes (Each JPEG image cropped out of the 4K burst file complies with EXIF.)

  TIME LAPSE SHOT

  • Yes

  STOP MOTION ANIMATION

  • Yes

  FLASH

  • Flash type
    • TTL Built-in-Flash, GN5.1 equivalent (ISO200 ・m) / GN3.6 equivalent (ISO100 ・m) (Reference), Built-in Pop-up
  • Flash mode
    • Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off *For iA, iA+ only.
  • Synchronization speed
    • Less than 1/50 second
  • Flash output adjustment
    • 1/3EV step ±2EV
  • Flash synchronization
    • 1st. Curtain Sync., 2nd Curtain Sync.
  • Wireless control
    • Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

  LIVE VIEW

  • Digital zoom
    • 2x
  • Extra Tele Conversion
    • Still image: 1.4x (EX M), 2.0x (EX S)
    • Motion picture: ON / OFF
  • Other functions
    • Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Center Marker, Highlight display (Still image / motion picture), Zebra Pattern (Still image / motion picture),
    • Frame Maker, REC Frame Indicator, Live View Boost

  SELF SHOT

  • Self Shot mode
    • Yes (Still image / motion picture)
  • Shutter
    • Shutter Button, Touch, Face Shutter, Buddy Shutter
  • Effect
    • Soft Skin: 10 levels, Filter Select: Expressive / Retro / High Key / Monochrome / Toy Effect, Background Control: Defocus / Clear, Slimming Mode: 10 levels

  VERTICAL POSITION INFORMATION

  • Still image / Motion picture (ON/OFF)

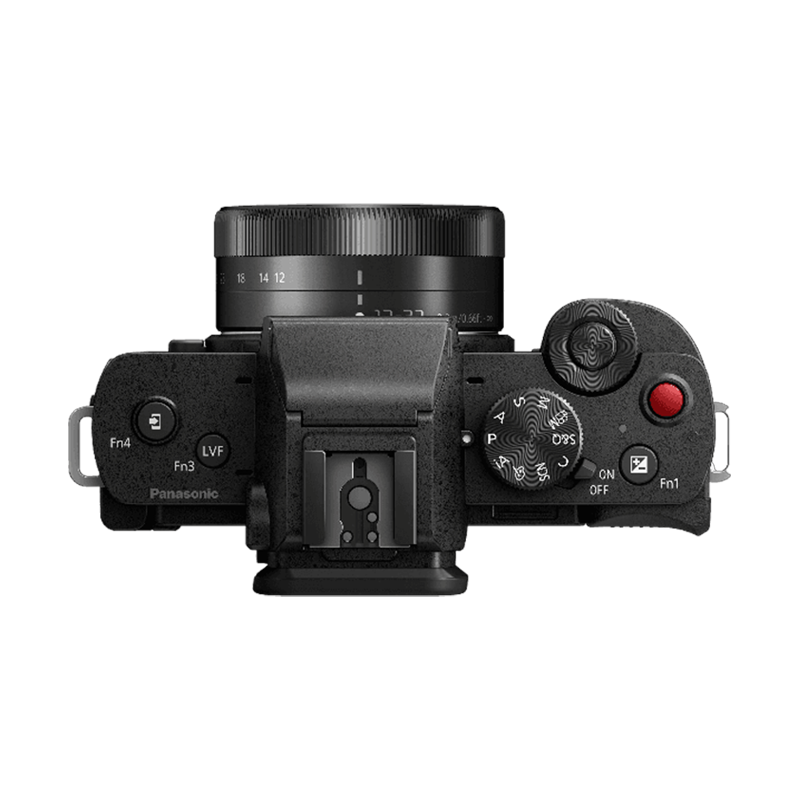

  FUNCTION BUTTON

  • REC
    • 4K PHOTO / Exposure Comp. / Wi-Fi / Q.MENU / Video Record / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF/AE LOCK / AF-ON / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / Operation Lock / Focus Ring Lock / Dial Operation Switch / Photo Style / Filter Effect / Aspect Ratio / Picture Size / Quality / Metering Mode / Burst Rate / Self Timer / Live View Composite / Bracket / Focus Mode / Highlight Shadow / i. Dynamic / i. Resolution / Min. Shtr Speed / HDR / Shutter Type / Flash Mode / Flash Adjust. / Wireless Flash Setup / Ex. Tele Conv. / Digital Zoom / Stabilizer / E-Stabilization (Video) / 4K Live Cropping / Snap Movie / Motion Pic. Set / S&Q Effect / Picture Mode in Rec. / Sound Rec Level Adj. / Sound Rec Level Disp. / Built-in Mic / Mic. Directivity Adjust / Silent Mode / Peaking / Histogram / Guide Line / Frame Maker / Zebra Pattern / Monochrome Live View / Constant Preview / Live View Boost / Rec Area / Step Zoom / Zoom Speed / Sensitivity
      / White Balance / AF Mode/MF / Drive Mode / Rec/Playback Switch / Off / Restore to Default
  • PLAY
    • Wi-Fi / LVF/Monitor Switch / Rec/Playback Switch / Send Image (Smartphone) / 4K PHOTO Play / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / RAW Processing / 4K PHOTO Bulk Saving / Off / Restore to Default

  PHOTO STYLE

  • Standard / Vivid / Natural / Scenery / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D / Cinelike V / V-Log L / Custom

  FILTER

  • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Colour / Sunshine*
    *For photos only.

  INTERFACE

  • USB
    • USB Type-C (USB 2.0 High-Speed)
  • HDMI***
    • microHDMI TypeD / VIERA Link
      Video: Auto / 4K/25p / 1080p / 1080i / 720p / 576p
      Audio: Stereo
  • External microphone input
    • φ3.5mm
      Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
  • Microphone
    • Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
  • Speaker
    • Monaural

  WIRELESS

  • Wi-Fi
    • IEEE 802.11b/g/n, 2412 MHz – 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
  • Bluetooth
    • Bluetooth^® v4.2 (Bluetooth Low Energy (BLE))

  POWER

  • Battery
    • Li-ion Battery Pack (7.2V, 1025mAh, 7.4Wh) (Included)
    • USB power charging
  • Battery life (CIPA standard)
    • Approx. 270 images (rear monitor), 280 images (LVF), 1,050 images (Power Save LVF mode*) with H-FS12032 / H-FS12060 / H-FS45150
      *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
  • Continuous recordable time (Motion picture)**
    • 4K/30p, 4K/25p:
      Approx. 80 min with H-FS12032 / H-FS12060 / H-FS45150
  • Actual recordable time (Motion picture)**
    • 4K/30p, 4K/25p:
      Approx. 40 min with H-FS12032 / H-FS12060 / H-FS45150

  DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)
    • Approx. 115.6 x 83.1 x 54.2 mm / 4.55 x 3.27 x 2.13 inch (excluding protrusions)
  • Weight
    • Approx. 346g / 0.76 lb (SD card, Battery, Body)
    • Approx. 304g / 0.67 lb (Body only)
    • Approx. 416g / 0.92 lb (SD card, Battery, H-FS12032 lens included)
    • Approx. 546g / 1.20 lb (SD card, Battery, H-FS45150 lens included)
    • Approx. 524g / 1.16 lb (SD card, Battery, H-FS12032 lens + tripod grip DMW-SHGR2 included)

  OPERATING ENVIRONMENT

  • Operating temperature
    • 0℃ to 40℃ (32°F to 104°F)
  • Operating humidity
    • 10%RH to 80％RH

  STANDARD ACCESSORIES

  • Software
    • ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.0AE is available for download at Panasonic website using computer connected to the Internet.
      https://panasonic.jp/support/software/photofun/download/d_pfs10ae.html (For Windows)
    • ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory’s website using computer connected to the Internet.
      http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
  • Standard accessories
    • DC-G100DK Kit
      Hot Shoe Cover, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Shoulder Strap, Lens Cap
    • Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.





  Note

  • ** About motion picture recording / 4K PHOTO recording
  • Use a card with SD Speed Class with “Class 4” or higher when recording motion pictures (under 28Mbps).
  • Use an SD memory card with SD Speed Class with “UHS-I UHS Speed Class 3 (U3)” when recording motion pictures in [4K] [Slow & Quick] or [4K PHOTO].
    (SD speed class is the speed standard regarding continuous writing.)
  • Recording stops when the continuous recording time exceeds 10 minutes in [4K] [Slow].
  • Recording stops when the continuous recording time exceeds 20 minutes in [FHD/60p] [FHD/50p].
  • Recording stops when the continuous recording time exceeds 29 minutes and 50 seconds in [Quick].
  • Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds in [FHD/30p] [FHD/25p] [FHD/24p] [HD].
  • MP4 motion pictures in [4K]:
  • When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
  • When using an SDXC memory card: You can record a motion picture in a single file.
  • MP4 motion pictures in [FHD/30p] [FHD/25p] [FHD/24p] [HD]:
  • You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
  • When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.*** For [4K] video output, use an HDMI cable that has the HDMI logo on it, and that is described as”4K compatible”.



  Note

  • ** About motion picture recording / 4K PHOTO recording
  • Use a card with SD Speed Class with “Class 4” or higher when recording motion pictures (under 28Mbps).
  • Use an SD memory card with SD Speed Class with “UHS-I UHS Speed Class 3 (U3)” when recording motion pictures in [4K] [Slow & Quick] or [4K PHOTO].
    (SD speed class is the speed standard regarding continuous writing.)
  • Recording stops when the continuous recording time exceeds 10 minutes in [4K] [Slow].
  • Recording stops when the continuous recording time exceeds 20 minutes in [FHD/60p] [FHD/50p].
  • Recording stops when the continuous recording time exceeds 29 minutes and 50 seconds in [Quick].
  • Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds in [FHD/30p] [FHD/25p] [FHD/24p] [HD].
  • MP4 motion pictures in [4K]:
  • When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
  • When using an SDXC memory card: You can record a motion picture in a single file.
  • MP4 motion pictures in [FHD/30p] [FHD/25p] [FHD/24p] [HD]:
  • You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
  • When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
  • *** For [4K] video output, use an HDMI cable that has the HDMI logo on it, and that is described as”4K compatible”.
